Electric low lift pallet truck WPX18

Pedestrian-operated machine
Capacity: 1800 kg

WPX18

WPX18 1800 kg





loadmax. 1800 kg
Forkmax. 200 mm
speedmax. 6 km/h
engine1.1 kW
max. 98 Ah/5hr
astmin. 1720 mm



Compact. Highly maneuverable. Integrated charging unit.

The WPX18 low lift pallet truck optimizes material flow with its AC drive technology and the CLARK SpeedControl (CSC). Perfectly adjusted lateral support rollers improve lateral stability when cornering.

The truck can be charged at 230 V outlets, charging the maintenance-free block batteries via the integrated charging unit.

Ergonomic and safe

  • Programmable for customized driving
  • Simple and fast implementation of control commands
  • Automated soft deceleration and return into the neutral position when releasing the tiller

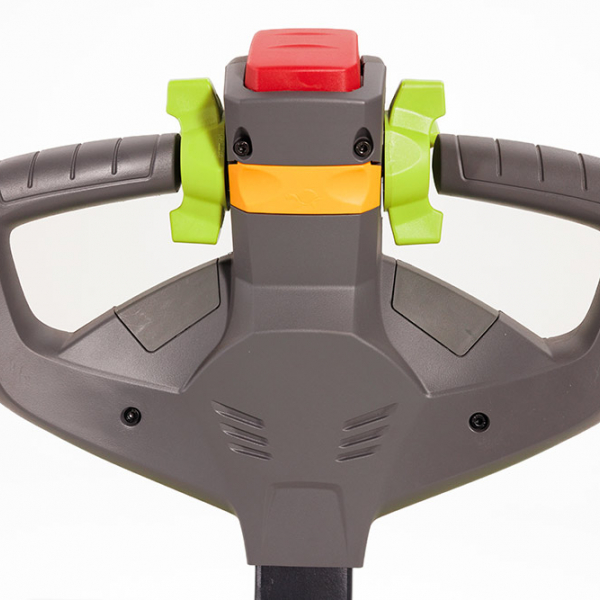

  • Ergonomic tiller head
  • Identical control of all driving commands for left- and right-handed users

Safety

  • due to electromagnetic brakes preventing unsupervised rolling of the vehicle, also on ramps

Powerful and maintenance-free AC drive technology

  • with a capacity of 1.1 kW

Added safety

  • via the CLARK SpeedControl system (CSC) which automatically adjusts the maximum travel speed depending on the tiller position

Extremely slim

and flexible 1,800 kg low lift pallet truck with a total width of only 645 mm.

Increased foot protection

due to ground clearance of only 35 mm.

  • Ergonomic and safe

    • Programmable for customized driving
    • Simple and fast implementation of control commands
    • Automated soft deceleration and return into the neutral position when releasing the tiller
    • Ergonomic tiller head
    • Identical control of all driving commands for left- and right-handed users
  • Safety

    • due to electromagnetic brakes preventing unsupervised rolling of the vehicle, also on ramps

    Powerful and maintenance-free AC drive technology

    • with a capacity of 1.1 kW
  • Added safety

    • via the CLARK SpeedControl system (CSC) which automatically adjusts the maximum travel speed depending on the tiller position
  • Extremely slim

    and flexible 1,800 kg low lift pallet truck with a total width of only 645 mm.

  • Increased foot protection

    due to ground clearance of only 35 mm.



    • WPX18 Application
    • WPX18 Clipped
    • WPX Handle Deichel Neu
    • Produkt Bild Fehlt



      Features and benefits

      Features and benefits

      • Powerful and maintenance-free AC drive technology with a capacity of 1.1 kW
      • Extremely slim and flexible 1,800 kg low lift pallet truck with a total width of only 645 mm
      • More safety via the CLARK SpeedControl system (CSC) which automatically adjusts the maximum travel speed depending on the tiller position
      Comfort and ergonomics

      Comfort and ergonomics

      • Support rollers with suspension for highest degree of stability

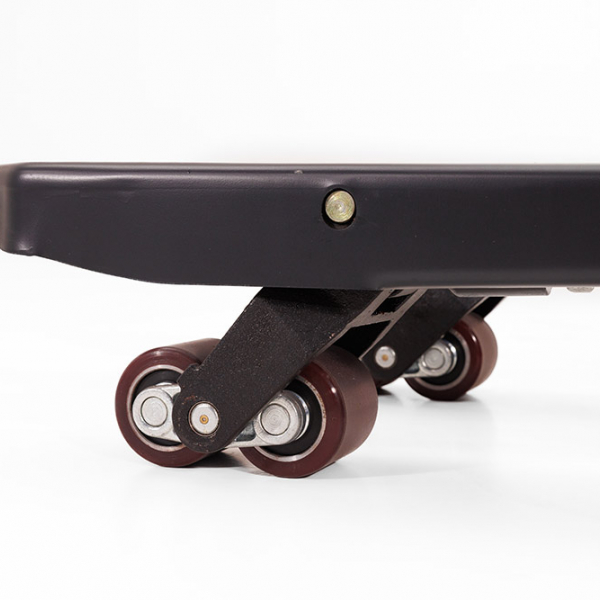

      • Tandem load rollers as standard configuration
      • Convenient integration of all driving and lifting switches in the tiller
      • Battery discharge indicator in clearly visible position

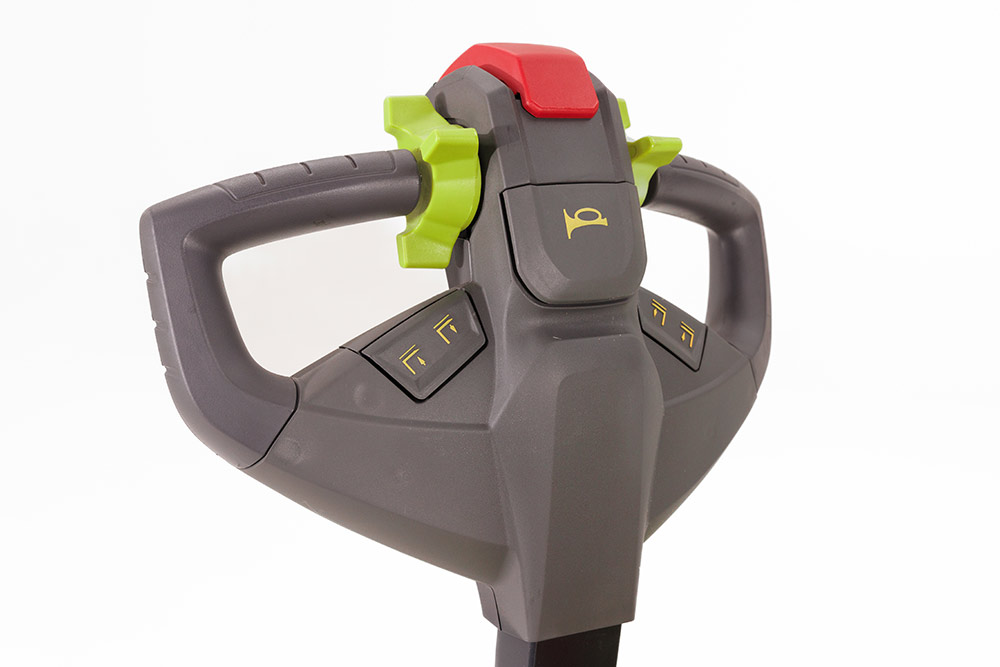

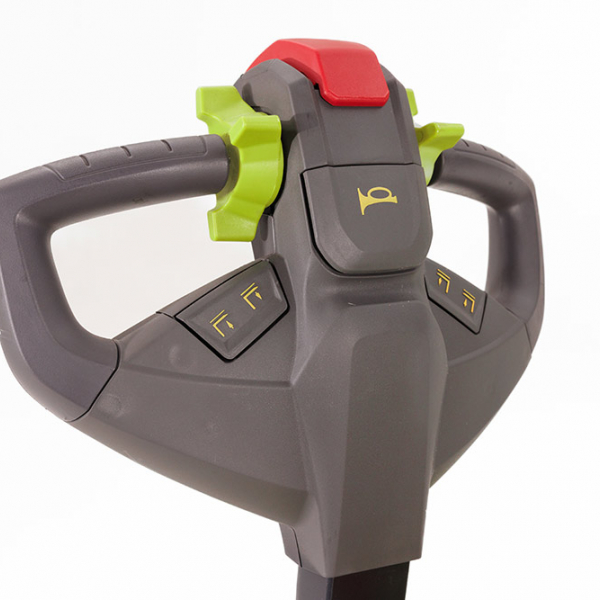

      Ergonomic and safe tiller

      Ergonomic and safe tiller

      • Simple and fast implementation of control commands
      • Automated soft deceleration and return into the neutral position when releasing the tiller

      Automatic parking brake

      • Safe operation on slopes and ramps
      • Release of the automatic parking brake when driving switch is activated
      CLARK SpeedControl (CSC)

      CLARK SpeedControl (CSC)

      • Makes it easier to maneuver, in particular when operating the vehicle in smaller spaces
      • Depending on the tiller position, the maximum travel speed is adjusted automatically
      • In the SpeedControl mode (S), the maximum travel speed is controlled; this ensures safe and swift positioning
      • If the tiller is in normal drive mode (K), maximum travel speed can be reached

      All parameters can be customized as per the customer’s request.
