Electric Crossover Forklift
Super elastic tyres
Load capacity: 2500 – 3500 kg @ 500 mm LSA

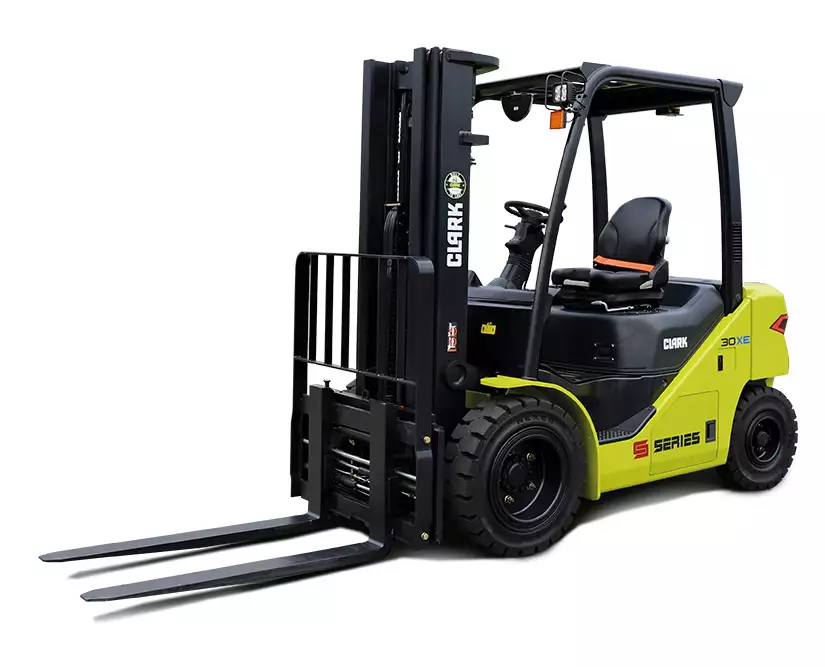

S25-35XE Four wheel truck
Overview
S25-35XE – High-End Electric Forklift Truck
| Load capacity | max. 3500 kg @ 500 mm LSA |
Drive motor power | 17,2 kW |
| Lifting height | max. 7315 mm | Aisle width | min. 3935 mm |
| Travelling speed | max. 20 km/h | Battery performance(80 V) | 205, 410 or 460 Ah |
What makes the CLARK Renegade (S25-35XE) so special?
CLARK crossover models: Robust, flexible, electric
The CLARK Renegade (S25-35XE) combines the best of both worlds: With dimensions and features that match those of diesel and LPG forklifts, this electric truck offers the same performance and robustness expected from IC engine-powered models. At the same time, you benefit from the advantages of a modern, emission-free electric drive.
Thanks to this unique combination of power, flexibility and environmental friendliness, the CLARK Renegade (S25-35XE) sets new standards for versatile applications in a wide range of work areas - both indoors and outdoors.
-
Ground clearance and centre of wheelbase
Ground clearance and centre of wheelbase
S25XE Electrical S25D Diesel m1= 135 mm m2= 155 mm Ground clearance with load under the mast (m1) and centre of wheelbase (m2)
-
Tyre sizes
Tyre sizes
S25XE Electrical S25D Diesel V’’= 7,00 x 12 H’’= 6,00 x 9 Front tyres (V’’)
Rear tyres (H’’) -
Turning radius (Wa) and aisle width (Ast)
Turning radius (Wa) and aisle width (Ast)
S25XE Electrical S25D Diesel Wa= 2270 2330 Ast= 3935 3995
-

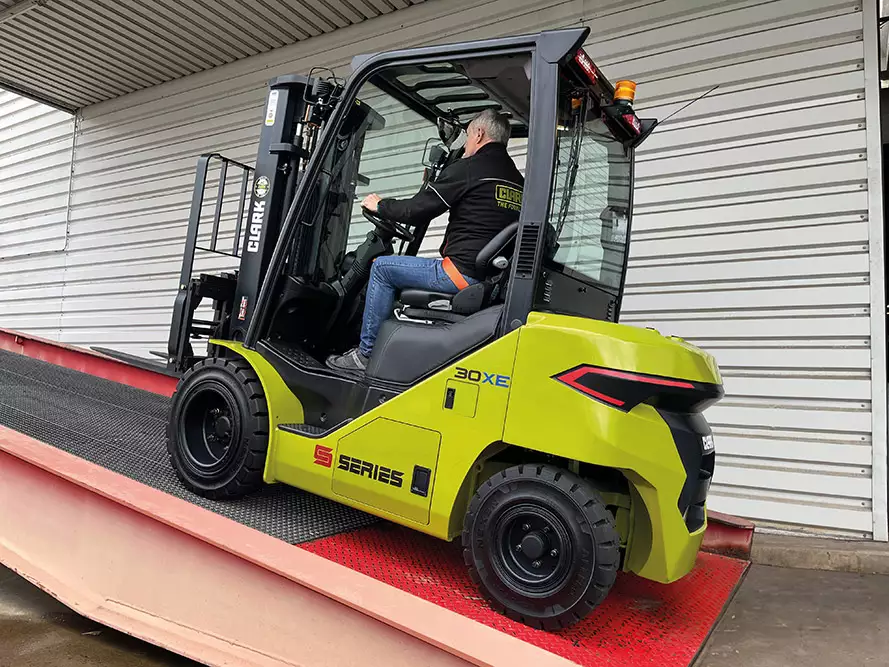

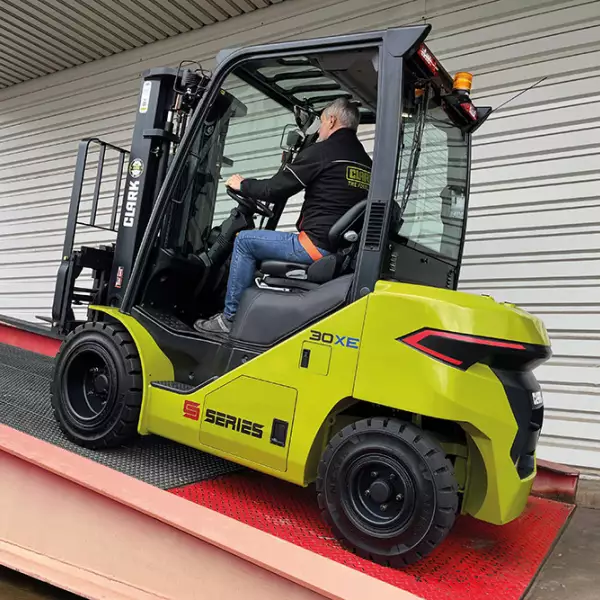

Maximum climbing ability
Maximum climbing ability
S25XE Electrical S25D Diesel max. 27,3 % 20,2 % (unloaded)
-
Overhead guard heights
Overhead guard heights
S25XE Electrical S25D Diesel H= 2165 mm 2165 mm -
Maximum speed
Maximum speed
S25XE Electrical S25D Diesel max. 18 km/h 17,3 km/h (loaded)
Features
Proven, interlocking mast rails ensure a robust design and a narrow „column“ to maximise visibility.
Thanks to the intuitive dashboard, the CLARK Renegade (S25- 35XE) is easy to operate. Instructions for the operator are available in several languages. The display can optionally show the load weight or the image from the reversing camera.
Ergonomically located hydraulic levers next to the driver‘s seat, with integrated directional control on the hydraulic lever, make manoeuvring intuitive and effortless.
The overhead guard offers generous headroom, which significantly increases both the comfort and safety of the operator.
Thanks to water-protected components, such as the IP54 protection (dust and splash proof) of the drive and hydraulic motor, outdoor use is possible without any problems, even in bad weather.
The bonnet can be opened wide to check the battery and facilitate access to the truck interior.
Our cabin programme
Included in the fully equipped driver's cab:
- Heating with proportionally controllable heating valve
- Two-part side door
- Sliding window
- Bluetooth radio with USB connection
- Front and rear windscreen wipers
- Heated rear windscreen
- Cup holder
- Storage box and note holder
-
Included in the fully equipped driver's cab:
- Heating with proportionally controllable heating valve
- Two-part side door
- Sliding window
- Bluetooth radio with USB connection
- Front and rear windscreen wipers
- Heated rear windscreen
- Cup holder
- Storage box and note holder
-
Our cabin programme includes the following options:
- Rain protection (PVC roof)
- Weather protection (steel roof and windscreen)
- Partial cab (steel roof, front and rear windscreen)
- Full cab
SMART • STRONG • SAFE

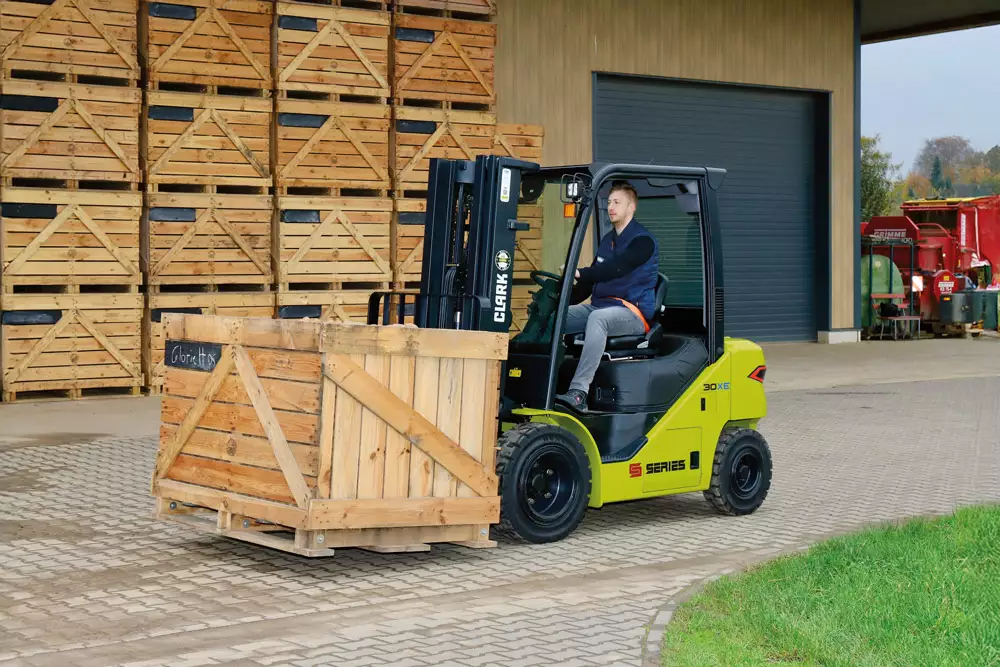

Smart Solution for Indoor and Outdoor Use
- The Renegade combines emission-free electric drives with the characteristics of a combustion-powered truck. Efficient, environmentally friendly, versatile - and perfect for indoor and outdoor use
Smart Solutions for changing Travel Direction
- The direction of travel can be changed using a switch on the hydraulic lever, via the armrest with mini-levers, or conventionally on the steering column
Smart Solutions for perfect Battery Management
- The Renegade offers smart charging options: an integrated charger and external chargers that can be used simultaneously. This means you will find the optimum solution for every application profile
High Residual Load Capacity
- Up to 3.5 tonnes at 500 mm
- Optionally with wide or dual tyres for the safe transport of wide loads
- Low centre of gravity and high residual load capacity
Solid CLARK Uprights
- Nested mast profiles
- 6-roller fork carriage as standard
- CLARK mast damping
- Underbody protection as standard
- Water-protected components - IP54
(dust and splash water)
Built-to-Last Construction
- Only high-quality and durable components are used in the construction of the electric forklift trucks
- The Renegade has a durable and electronically protected transmission
- The steering axle is extremely stable and vibration-free
Self-Activating Parking Brake
- Manual or mechanical activation of the parking brake is not necessary. The parking brake is activated automatically when leaving the truck
Roll-Back Protection on Inclines
- Unintentional rolling away or rolling back is prevented
VMS-System
- When the function is activated, the tilting process of the mast stops automatically in the vertical position
Load Weight Indicator on the Display
- Informs the driver of the current weight of the load on the forks. Can be combined with other attachments
Adjustable Maximum Speeds
- The maximum travelling speed can be permanently reduced by a service technician on request
Highlights
-
Ergonomics
Top-Class Ergonomics
With the Renegade, CLARK sets new standards in operator comfort. CLARK ensures fatigue-free working, even over long shifts.
The hydraulic levers ergonomically mounted on the hood next to the driver’s seat, combined with the integrated direction control switch, enable intuitive and effortless control - for maximum efficiency in every application.
The slim steering column offers generous legroom, while the optimally positioned step ensures safe and comfortable entry and exit.
-
SMART Display
SMART Display: All Information at a Glance
The SMART display of the CLARK Renegade (S25- 35XE) provides all important information at a glance. Among other things, it shows the battery status, error codes and operating hours in a clearly structured manner. The information is available in different languages so that the display can be used easily in international teams. The 5-inch colour display also offers a wide range of options via the service to individually adapt the driving characteristics to the operator’s requirements. A modern display that combines efficiency and user-friendliness.
For example, the acceleration behaviour and electric braking behaviour can be set by the service technician via the display.When using a reversing camera, the image is also transmitted directly to the colour display so that the driver always has an optimum overview of the route and surroundings, even when reversing. The optional load weight indication is also shown to the driver via the SMART display. This ensures additional safety and comfort in everyday work. -
Maximum Safety
Maximum Safety with Operator Presence System (OPS) as standard
The CLARK Renegade (S25- 35XE) is equipped with the Operator Presence System (OPS), which significantly increases the safety of the operator and his surroundings. This system monitors the presence of the driver and automatically switches off the hydraulic and driving functions as soon as the driver eaves the seat.
The feature prevents unintentional movements of the truck and offers additional protection against accidents and injuries. The OPS ensures that the truck only remains active when the driver is safely seated and in control. This ensures smooth and safe operation
-
Li-Ion
Lithium-ion technology from CLARK
Flexible Energy Supply with safe Lithium-Ion Batteries:
205 Ah, 410 Ah and 460 AhAll batteries are based on safe lithium iron phosphate technology (Li-FePO4), which is characterised by a high level of safety and durability. Various chargers are also available, including an onboard charger integrated into the truck, which enables fast and flexible recharging anytime and anywhere - whether indoors or outdoors.
Battery
voltageModel Capacity (Ah) kWh 80 V S25XE 230 16,4 410 32,8 S30XE / S35XE 205 16,4 410 32,8 460 36,8 -
Charger
Optional Integrated Charger
The optional 80 V and 35 Ah charger integrated in the vehicle enables flexible charging at any conventional 230 V socket. It is ideal for intermediate charging, as recharging can be carried out directly at the place of use without having to take the vehicle to a stationary charger. At the same time, it is still possible to use a more powerful external charger with 80 V and 100 Ah or 80 V and 200 Ah.
Optional Equipment
-
Driver‘s Seats
The driver‘s seat is available with either mechanical suspension or air suspension. Various versions with orange seat belt, side safety bars or armrests.
-
Hydraulic Levers
Control levers mounted on the bonnet come as standard, with an option for up to five hydraulic functions to support various attachments.
-
Armrest with Integrated Mini Levers
Ergonomic mini levers for hydraulic control are available, with the option to integrate the travel direction change into the armrest upon request.
-
Direction Switch on the Hydraulic Lever
Switching the direction of travel directly on the hydraulic lever reduces the driver‘s workload by eliminating the need to reach around the steering column to change direction.
-
Reversing Camera
Enhanced safety during operation thanks to a wide field of vision for activities behind the truck, provided by a rear-mounted camera.
-
Storage Compartment
Available with USB charging port.
-
Blue LED Warning Lights
The blue LED warning lights provide a visual warning for both directions of travel.
-
Fork Positioners with Sideshift
CLARK fork positioners are ideal for changing load widths and increase handling capacity. Including separate sideshift function.
-

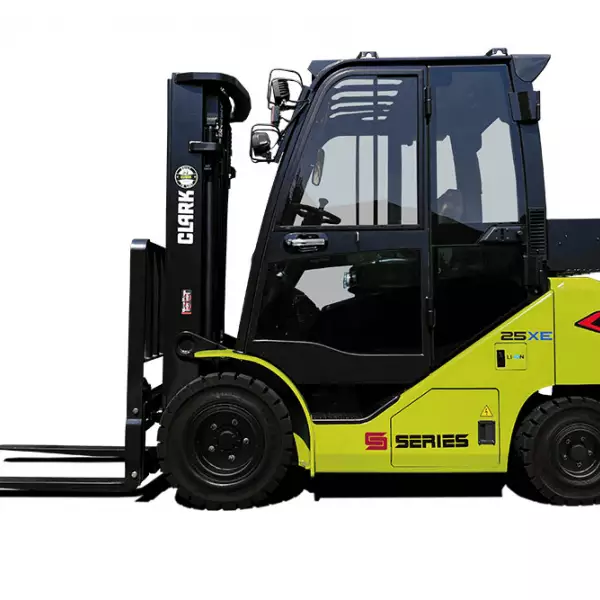

Full Cabin with Air Conditioning
For more productivity on hot days. With good cooling performance, dehumidification and integrated cooling and heating function.
-
CLARK VMS System
By activating this function, the tilting process of the mast stops automatically when tilting forwards or backwards in a vertical position.
-
Load Weight Indication
The load weight indicator ensures accurate weight readings, even when different attachments are in use. This is made possible by a driver-activated tare function.
-
Integrated Charger
The integrated charger with 80 V and 35 Ah enables flexible charging at any conventional 230 V socket.
Technical specifications
| Load capacity in kg | Overhead guard heights mm | Total width mm | Lifting height from/to mm | orking aisle width with pallet 800 x 1200 along (mm) | Driving speed with/without load (km/h) | Battery voltage/ max. rated capacity | |
|---|---|---|---|---|---|---|---|
| S25XE | 2500 | 2165 | 1190 | 2120/7315 | 4135 | 18/18 | 80 V, 410 |
| S30XE | 3000 | 2180 | 1225 | 2120/7315 | 4195 | 18/18 | 80 V, 460 |
| S35XE | 3500 | 2200 | 1278 | 2120/7315 | 4255 | 18/18 | 80 V, 460 |
