Overview

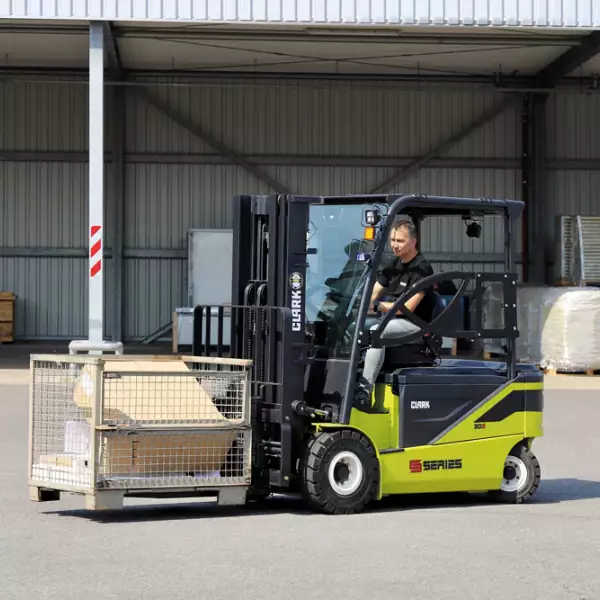

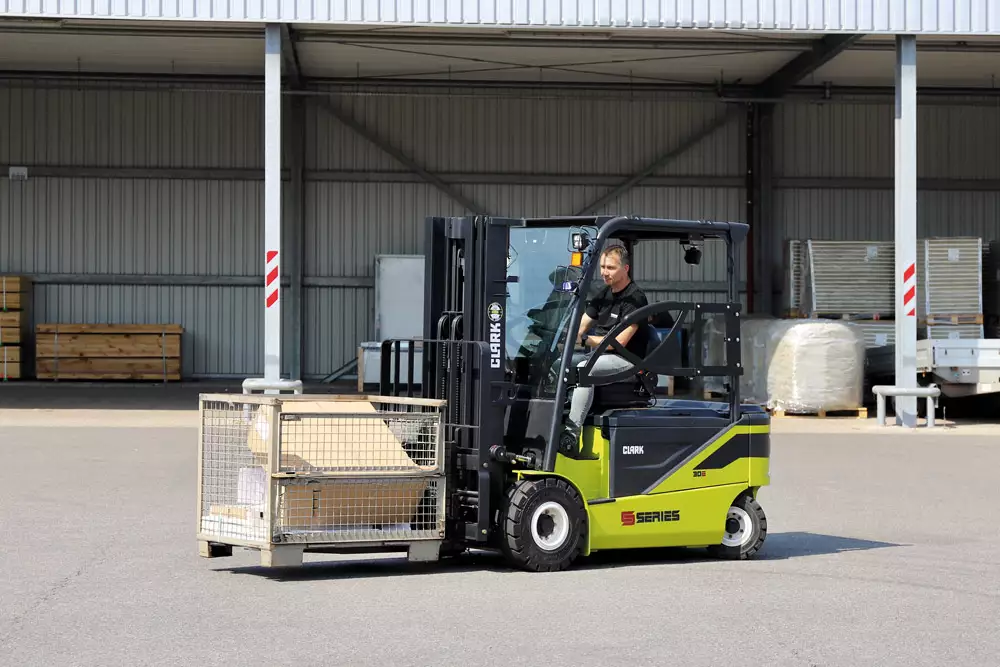

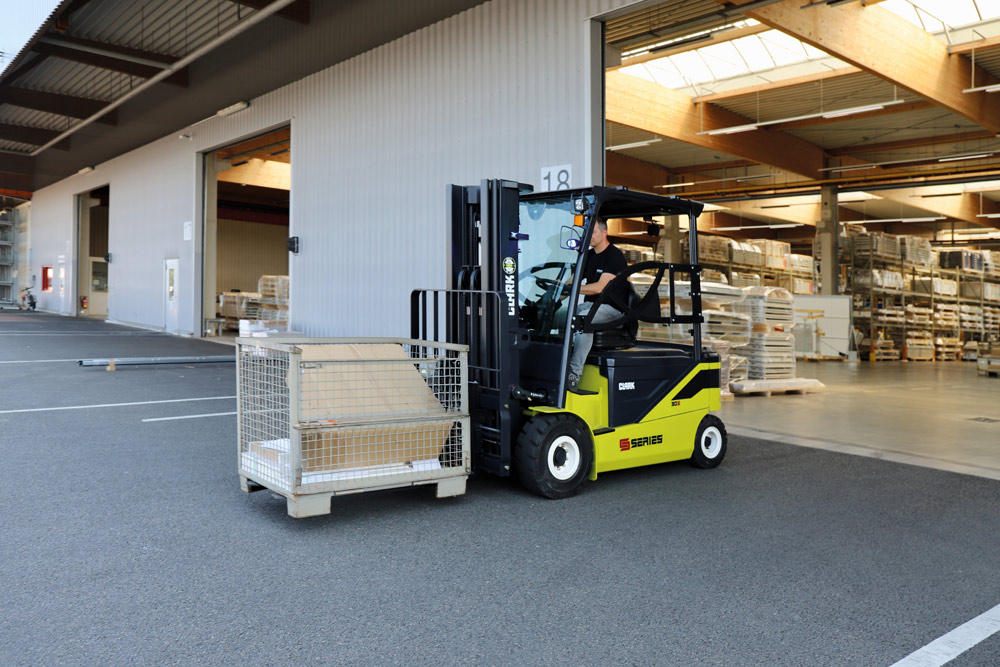

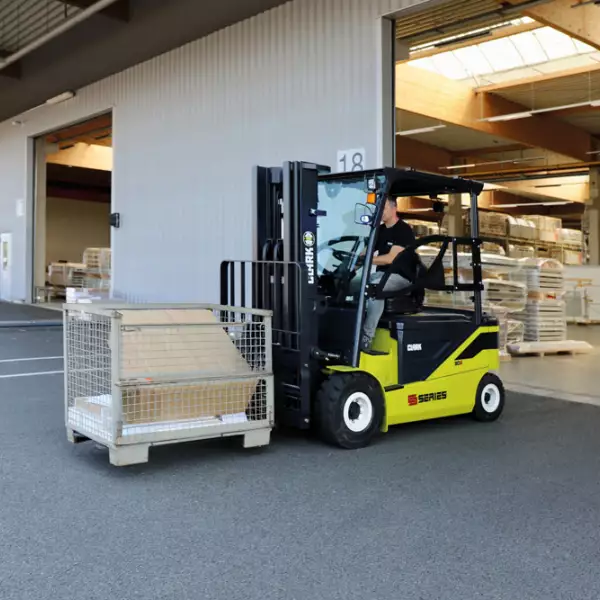

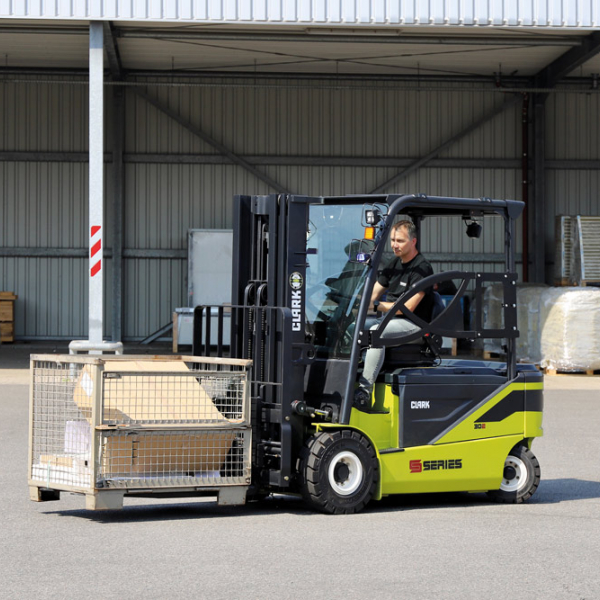

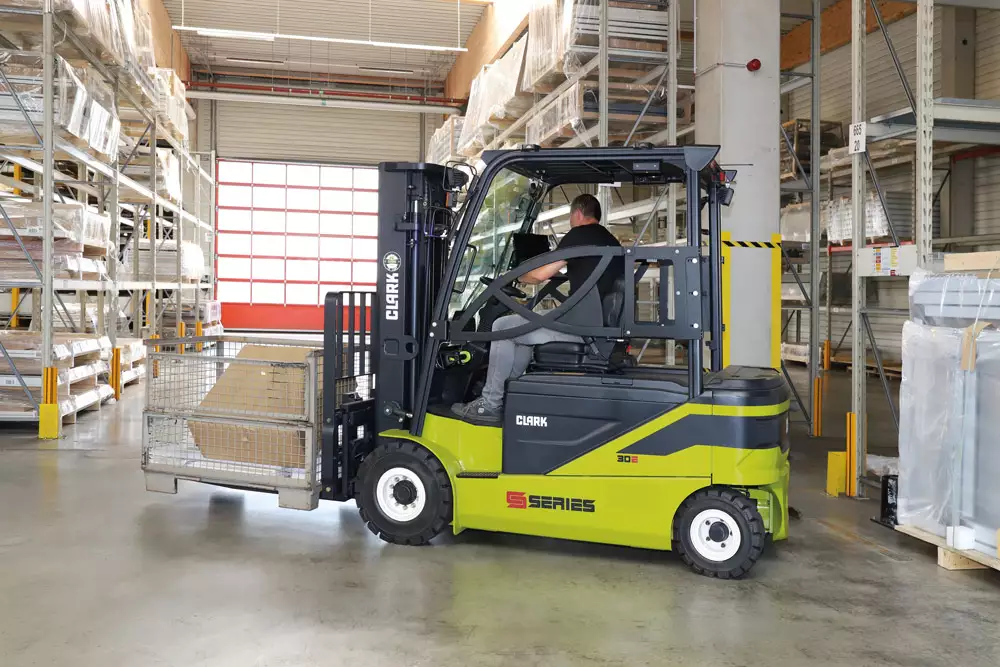

CLARK SE25-35
The CLARK electric forklift trucks in the SE25-35 series offer performance, safety and ergonomics. The electric counterbalance trucks keep your logistics moving -without harmful emissions.
With our advanced SMART display, which informs the operator of all important driving parameters, the two powerful, low-noise drive motors and a design that is built to last, the SE25-35 represents the next generation of electric forklift trucks. And this generation is SMART, STRONG and SAFE.
Load capacity | max. 3500 kg @ 500 mm LSA |
Drive motor power | 2x 9,0 kW |
Lifting height | max. 7315 mm | Battery capacity (Lead-acid version) |
max. 775 Ah |
Driving speed | max. 20 km/h | Battery capacity (Lithium-Ion version) |
max. 560 Ah |
Features
An optimised arrangement of chain and hoses allows a clear view of the forks and the load. The perfect arrangement of the overhead guard protection bars ensures an excellent view upwards.
Safety and warning messages can be individually programmed via the 5" colour display. When using a reversing camera, the image is transmitted to the colour display. The driver therefore has an optimum view of the activities on his route when reversing.
Control levers mounted on the bonnet are available as standard. With up to six hydraulic functions, the use of different attachments is possible.
In triplex masts, the free lift cylinders are built with double primary cylinders. This gives the driver a good forward visibility of the load and increased safety when travelling straight ahead thanks to the large, unobstructed viewing window.
With predictable directional control function on the hydraulic lever, there is no need for the operator to "reach around" to change direction.
Ergonomic mini levers for hydraulic control are available. On request, a change of direction can be integrated into the armrest
Our cabin programme
Highlights
Lithium-Ion-Technology from CLARK
Full power with long battery life and heavy-duty applications
The SE25-35 series with Li-Ion battery ensures efficient goods transport with maximum availability thanks to extremely short charging times and maximum productivity. The maintenance-free Li-Ion technology extends battery life, reduces operating costs and enables flexible multi-shift operation thanks to intermediate and fast charging capability.
You save time and optimise your storage space without having to change batteries at the side. And best of all, if your operating conditions change, you can switch back to lead-acid technology at any time. Thanks to this high level of flexibility, you can efficiently map any application profile.
Safety features
Numerous safety features speak in favour of the S-Series Electric, as it not only ensures safe and productive use, but also for a low total cost of ownership.
CLARK VMS system
When the function is activated, the tilting process of the mast is automatically in a vertical position.
Load weight indicator
Informs the driver about the current weight of the Load on the forks. Can be combined with other attachments.
Optional equipment
Technical Specification
Load capacity kg | Height above protective roof mm | Total width mm | Lifting height from/to mm | Aisle width with pallet 800 x 1200 lengthwise (mm) | Travel speed with/without load (km/h) | Battery voltage/ max. rated capacity | |
---|---|---|---|---|---|---|---|
SE25 | 2500 | 2212 | 1274 | 2120/7315 | 3800 | 19/20 | 80 V, 620 Ah (80 V, 560 Ah) |
SE30s | 3000 | 2212 | 1274 | 2120/7315 | 3800 | 19/20 | 80 V, 620 Ah (80 V, 560 Ah) |
SE30 | 3000 | 2212 | 1274 | 2120/7315 | 3949 | 19/20 | 80 V, 620 Ah (80 V, 560 Ah) |
SE35 | 3500 | 2212 | 1353 | 1985/7135 | 4029 | 19/20 | 80 V, 620 Ah (80 V, 560 Ah) |
Product video
3D Model
19 March 2024 - Clark presents the S-Series Electric
Smart e-performance for all kind of application
Duisburg, 19 March 2024 – Clark is presenting the new S-Series Electric to the public for the first time at LogiMAT in Stuttgart.
