Forklift with LPG drive C15-20s

Superelastic or pneumatic tyres
Capacity: 1500 - 2000 kg @ 500 mm LC

C15/18/20s



C15 1500 kg
C18 1800 kg
C20s 2000 kg

Brochure
SpecSheet


max. 2000 kg

max. 2000 kg

max. 7075 mm

max. 7075 mm

max. 17,6 km/h

max. 17,6 km/h

LPG 38,0 kW

LPG 38,0 kW

min. 3665 mm

min. 3665 mm



High availability with low operating and maintenance costs

The C15-20s LPG forklifts are equipped with a robust and durable construction, which, coupled with their compact dimensions, makes these trucks suitable for both indoor and outdoor use. Low maintenance costs, high availability as well as long service life of these  forklifts keep the costs of ownership low.

CLARK Gabelstapler C15 mit Dieselantrieb bei CLARK Europe günstig kaufen

Good all-round visibility

Good all-round visibility and free View through the mast thanks to large viewing window

Mast

The lifting processes are particularly quiet thanks to hydraulically damped lifting cylinders. Nested mast profiles ensure good visibility through the mast.

Driver’s seats

Driver’s seats

Various driver’s seats with side safety bars and armrests are available. In addition, various adjustable comfort seats with air or mechanical suspension are available for this truck series.

Robust construction

Robust construction and low maintenance costs

  • Good all-round visibility

    Good all-round visibility and free View through the mast thanks to large viewing window

  • Mast

    The lifting processes are particularly quiet thanks to hydraulically damped lifting cylinders. Nested mast profiles ensure good visibility through the mast.

  • Driver’s seats

    Driver’s seats

    Various driver’s seats with side safety bars and armrests are available. In addition, various adjustable comfort seats with air or mechanical suspension are available for this truck series.

  • Robust construction

    Robust construction and low maintenance costs



    • C15 Dash
    • C15 App1 2021
    • C15-app-1
    • C15 Carriage

      Ergonomic Driver’s workplace

      Ergonomic Driver’s workplace

      The operator compartment has been designed with best practice safety features to offer the driver an unrestricted view of the fork and loads. Thanks to the raised seating position, the driver has a good all-round view. This increases safety when handling loads.



      Compared to other trucks in this segment, these trucks provide plenty of legroom and headroom for the driver. In addition, various adjustable comfort seats with air or mechanical suspension are available for this truck series.



      The tiltable steering column and the comfort seat can be individually adjusted. Various driver’s seats with side safety bars and armrests are available.

      Powerful industrial motor

      Powerful industrial motor

      Powerful acceleration and a reliable operation is ensured by state of the art LPG engines. With long maintenance intervals, an efficient drive is always guaranteed.

      To ensure reduced noise and low-vibration, the engines are mounted on buffers and thus isolated from the chassis and the axle.

      Safety and monitoring system

      Safety and monitoring system

      The truck display informs the operator about the condition of the forklift. Operating hours and maintenance intervals are shown on the LCD display.

      The display also informs the driver about:

      • A high gearbox temperature
      • Low Engine oil pressure
      • The state of charge of the alternator
      • A parking brake applied

      and much more

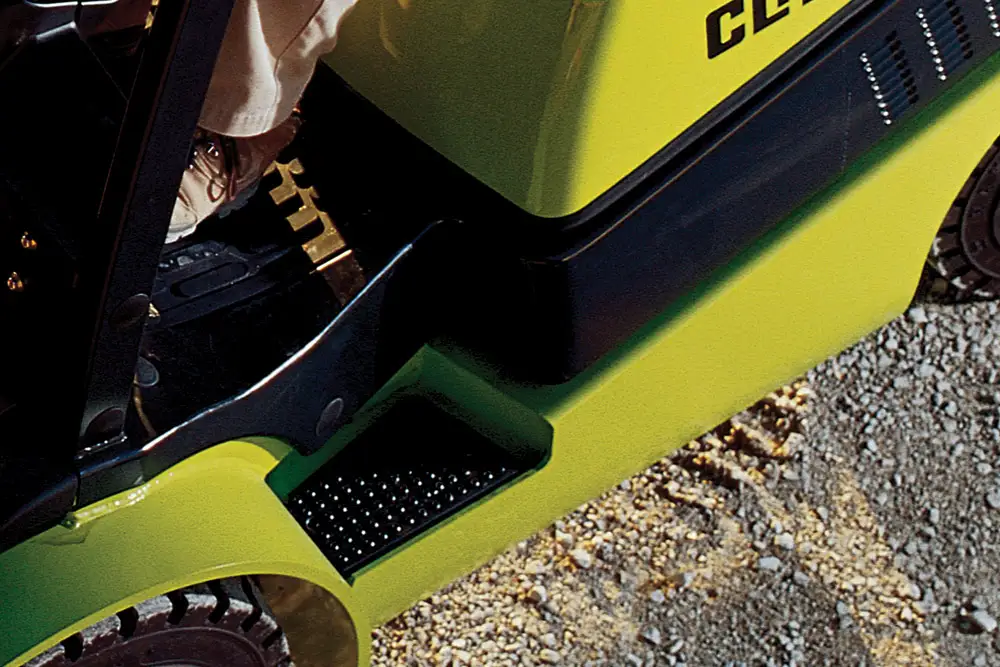

      Safe entry and exit

      Safe entry and exit

      The operator can easily and safely reach the ergonomic operator compartment via a large, low-set and non-slip step.

      Our safety features:

      Our safety features:

      With our numerous safety features, which are already largely included in the standard equipment, we make sure that you get exactly the right forklift truck for your application.

      If your application requires more, with numerous options we can find exactly the right specification for your individual application requirements.

      We will be happy to advise you.

      Safety features:

      • Audible reversing alarm
      • Automatic neutral position of the driving direction if the seat belt is not engaged
      • Blue LED warning lights
      • When leaving the forklift, the hydraulic functions are automatically deactivated
      • A hydraulic accumulator ensures that loads are prevented from bouncing on uneven floors
      • CLARK VMS system:
        When the function is activated, the tilting process of the mast stops automatically in the vertical position.
      • Speed limiter for programming a fixed maximum speed
      • Visible orange seat belt
      • Swingdown LPG bottle holder for easy and safe replacement

      Mast and carriage

      Mast and carriage

      The robust CLARK lifting masts from our own production have solid 6-roller fork carriers with four side support rollers. This allows even off-centre loads to be transported safely.

      The lifting processes are particularly quiet thanks to hydraulically damped lifting cylinders. Nested mast profiles ensure good visibility through the mast.

      Parking brake

      Parking brake

      Simple and error-free operation enables the foot-operated intuitive parking brake. The transmission is disengaged when the parking brake is activated.

      This prevents unintentional starting against the applied parking brake.
