CLARK Forklift truck with diesel or LPG drive S20 / S25 / S30 / S35 2000 - 3500 kg

Forklift with diesel or LPG drive S20-35

Superelastic or pneumatic tyres
Capacity: 2000 - 3500kg @ 500 mm LC

S20/25/30/35

S20 2000 kg - S25 2500 kg
S30 3000 kg - S35 3500 kg

Brochure
Spec Sheet
Spec Sheet Non EU
Video
Application example
Press release
max. 3500 kg

max. 3500 kg

max. 7935 mm

max. 7935 mm

max. 21.2 km/h

max. 21.2 km/h

LPG 52.4 kWDSL 46.0 kW

LPG 52.4 kW
DSL 46.0 kW

min. 3930 mm

min. 3930 mm



SMART • STRONG • SAFE

Stylish design – solid construction and greater security and operating comfort for the driver. With the S-Series, we have created a truck that focuses on the needs of the operator more than ever before. The next generation of internal combustion forklifts has arrived – the new S-Series.

Forklift with diesel or LPG drive S20-35

Nested upright rails

ensure a narrow profile of the CLARK uprights and a maximum vision window.

Protected front lights

  • Prevent damage
  • LED version for perfectly illuminated vision area

Upright damping

  • Hydraulic lift cylinder damping
  • Low-noise lifting hydraulics
  • Reduces vibrations and shocks

Compact design

  • Compact counterweight ensures maximum visibility when reversing

Low foot step

  • Ergonomically structured workstation with large low-level foot step
  • Easy and safe entry and exit

The power behind the punch

FORD (2.5L) LPG engine

  • Fuel-efficient industrial engine
  • 4-cylinder design
  • Meets all Stage 5 emission standards
  • Electronic speed measurement
  • ECU-controlled map ignition for more torque and low fuel consumption

ISUZU (2.2L) diesel engine

  • Turbocharger with intercooler
  • Meets all Stage 5 emission standards
  • Direct fuel injection with high peak torque
  • DPF (diesel particulate filter)
  • DOC (diesel oxidation catalyst)

YANMAR (3.3L) diesel engine

  • For non-EU diesel engine emission regulation countries (Stage IIIa).

Maintenance-free wet disc brakes

  • Enclosed and oil-cooled for smooth, low-noise operation = 50% lower force required compared to drum brakes. Less downtime
  • for maintenance compared to drum brakes
  • Equipped with proven components for a long service life

Separated transmission

  • Reduces vibrations in the driver's compartment when in use
  • Ensures a pleasantly quiet driving behavior
  • Enhanced productivity due to higher throughput rates

  • Nested upright rails

    ensure a narrow profile of the CLARK uprights and a maximum vision window.

  • Protected front lights

    • Prevent damage
    • LED version for perfectly illuminated vision area

  • Upright damping

    • Hydraulic lift cylinder damping
    • Low-noise lifting hydraulics
    • Reduces vibrations and shocks

  • Compact design

    • Compact counterweight ensures maximum visibility when reversing

  • Low foot step

    • Ergonomically structured workstation with large low-level foot step
    • Easy and safe entry and exit

  • The power behind the punch

    FORD (2.5L) LPG engine

    • Fuel-efficient industrial engine
    • 4-cylinder design
    • Meets all Stage 5 emission standards
    • Electronic speed measurement
    • ECU-controlled map ignition for more torque and low fuel consumption

    ISUZU (2.2L) diesel engine

    • Turbocharger with intercooler
    • Meets all Stage 5 emission standards
    • Direct fuel injection with high peak torque
    • DPF (diesel particulate filter)
    • DOC (diesel oxidation catalyst)

    YANMAR (3.3L) diesel engine

    • For non-EU diesel engine emission regulation countries (Stage IIIa).

  • Maintenance-free wet disc brakes

    • Enclosed and oil-cooled for smooth, low-noise operation = 50% lower force required compared to drum brakes. Less downtime
    • for maintenance compared to drum brakes
    • Equipped with proven components for a long service life

  • Separated transmission

    • Reduces vibrations in the driver's compartment when in use
    • Ensures a pleasantly quiet driving behavior
    • Enhanced productivity due to higher throughput rates

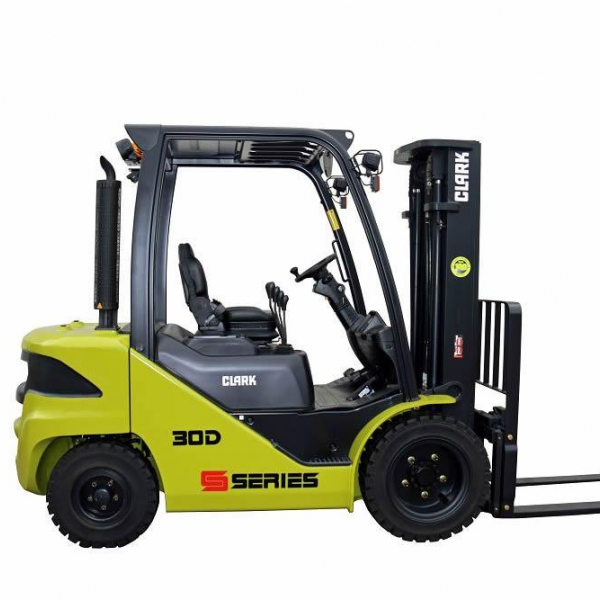

  • DE Clark S Series Dieselstapler

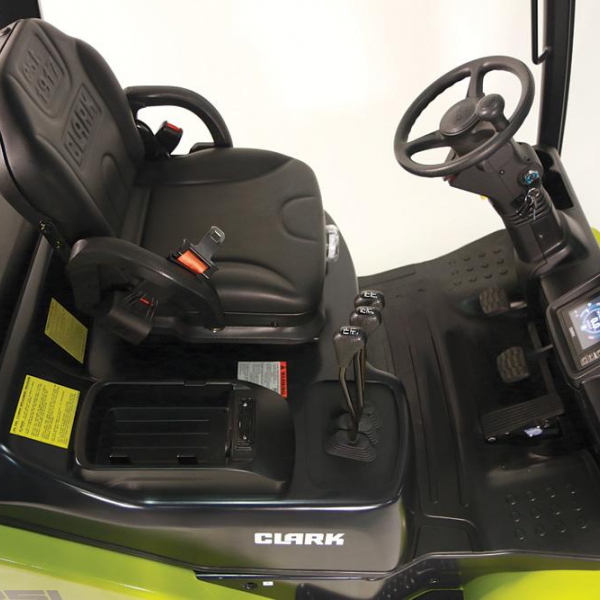

  • Operator Confort

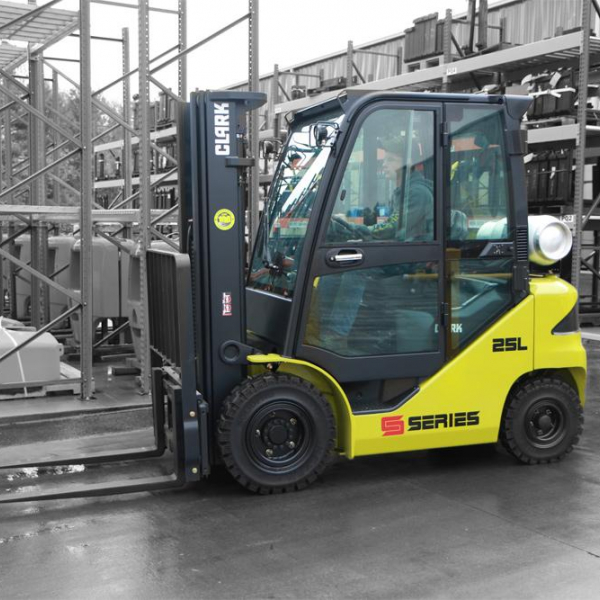

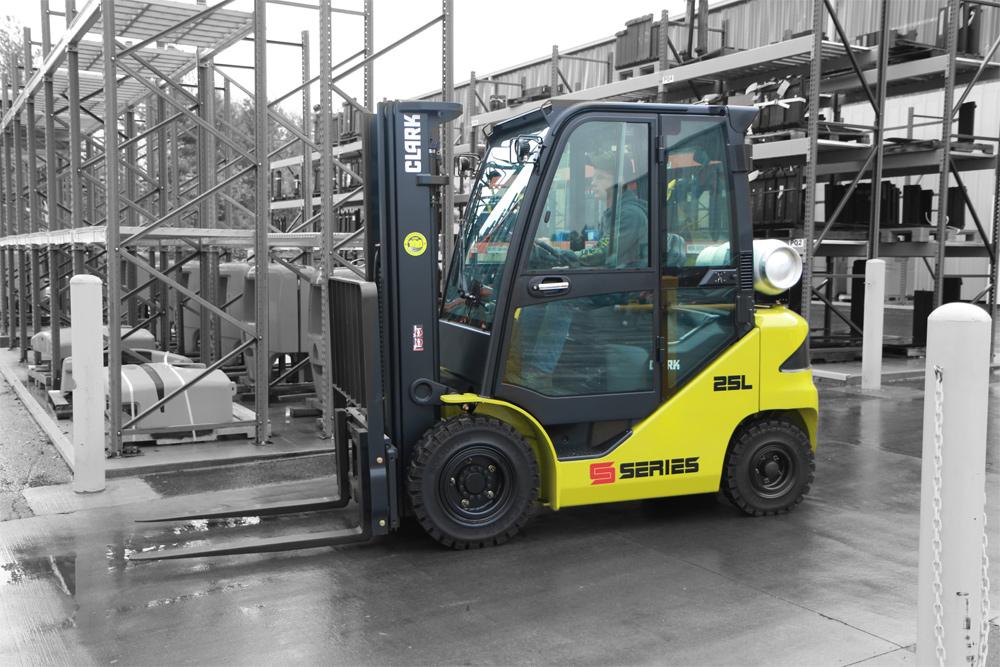

  • RW2A1448 Test

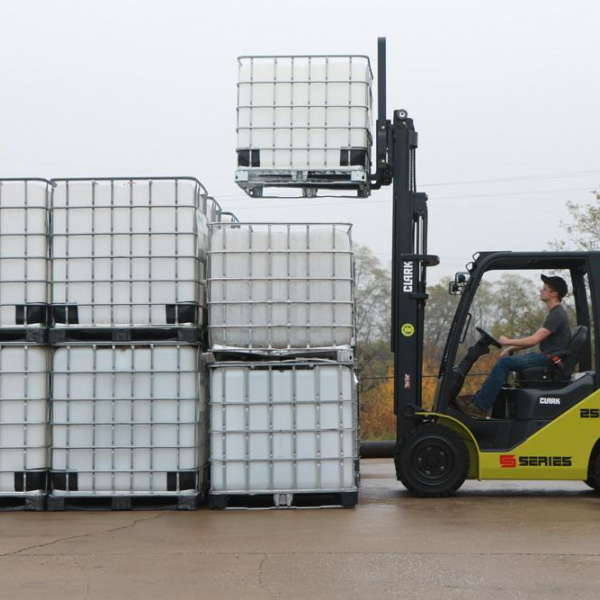

  • RW2A1629
  • RW2A9328
  • IMG 6783

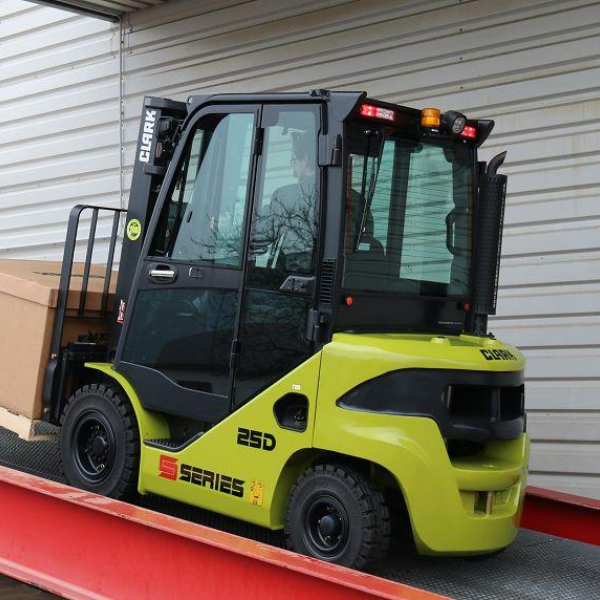

  • DE Clark S Series Rampeneinsatz Bild 10

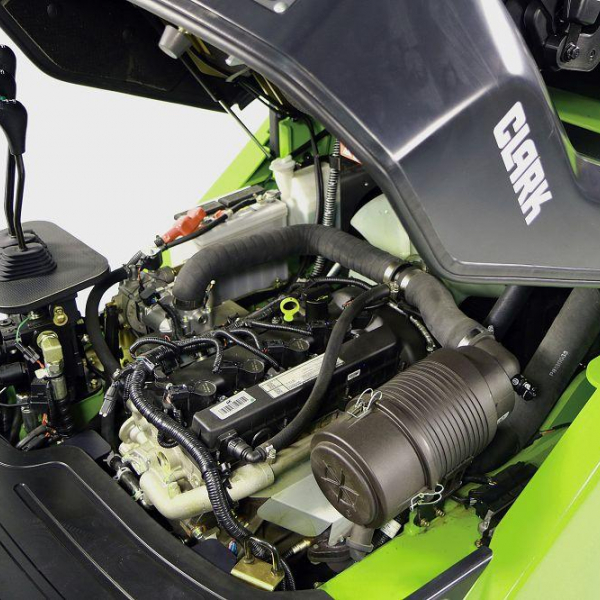

  • S-Series Motor



Smart

smart
Our development standards are traditionally regarded as a reference within the industry and have led to numerous innovations and improvements. The CLARK S-Series is the next generation of forklifts - smarter than ever before.

  • Low cost of ownership
  • Fuel-efficient engines
  • Optimum centre of gravity
  • Interactive control panel
  • Engine and transmission protection
  • Integrated service and maintenance tools
Strong

strong
CLARK trucks are BUILT TO LAST®! Due to the robust design, CLARK trucks offer high performance and dependability over a long service life.

  • Wet disc brake
  • High residual capacity
  • Modern engine variants
  • Nested upright rail
  • 6-roller fork carriage
  • Robust steering axle
Safe

safe
“Safety first” has always been a cornerstone of the CLARK philosophy. More than 100 years of experience ensure that the S-Series is improving these standards even more.

  • Automatic parking brake
  • Speed reduction
  • Improved all-round visibility
  • Rear view camera
  • Seat belt control
  • Load weight measurement and much more



  • Driver compartment and productivity

    Driver compartment and productivity

    • Minimal vibration and noise generation thanks to split transmission
    • Comfortable full suspension seat

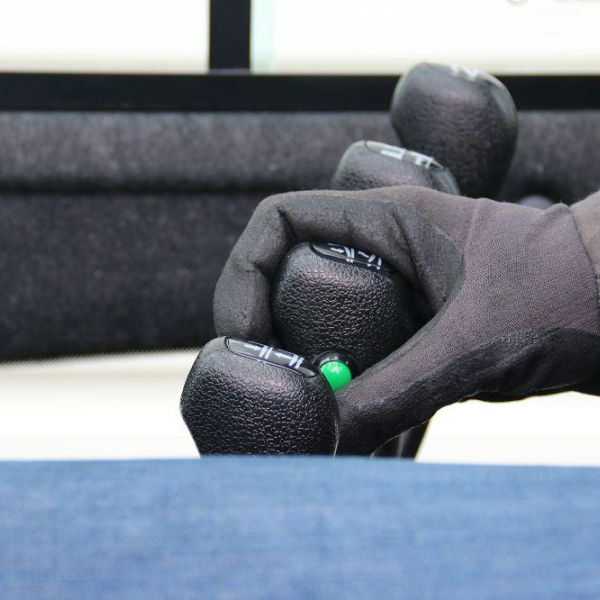

    • Responsive hydraulic levers hood mounted within easy reach
    • Non-slip floor plate
    • Spacious interior with ample leg room
    • Narrow steering column
    • Steering wheel with optimal diameter (ø=300 mm)
    • Brake servo
    • Optimised step height for easy entry and exit
  • Smart Display

    Smart Display

    • 5-inch TFT colour display
    • Real-time diagnostics
    • CAN bus system
    • Password-protected service access
    • Transmission protection management
    • Selection of different warning signs (optical / acoustic)
    • Fuel efficiency truck management options
      • Automatic engine shut down timer for excessive engine idling
      • Automatic light switch-off
  • Low cost of ownership

    Low cost of ownership

    • Low cost of ownership
    • Long service intervals
    • Simplified service thanks to transmission design
    • Powerful radiator as standard
    • Tool free floor plate removal
    • Reduced fuel consumption thanks to optimum engine efficiency/performance
    • Wet disc brake with oil cooling
    • Serviceability: all components are easily accessible for maintenance
    • Long service life thanks to robust CLARK uprights
  • High Performance Engines

    High Performance Engines

    FORD (2.5L) LPG engine

    • Fuel-efficient industrial engine
    • 4-cylinder design
    • Meets all Stage 5 emission standards
    • Electronic speed measurement
    • ECU-controlled map ignition for more torque and low fuel consumption

    ISUZU (2.2L) diesel engine

    • Turbocharger with intercooler
    • Meets all Stage 5 emission standards
    • Direct fuel injection with high peak torque
    • DPF (diesel particulate filter)
    • DOC (diesel oxidation catalyst)

    YANMAR (3.3L) diesel engine

    • For non-EU diesel engine emission regulation countries (Stage IIIa).



AVAILABLE OPTIONS

Unleash the full potential of the S series. With our extensive range of options, you can adapt your forklift to suit your individual application.



  • Rear view camera
    Rear view camera

    Rear view camera

    Increased operational safety with a wide field of vision, installed on the overhead guard

  • Individual hydraulic functions
    Individual hydraulic functions

    Individual hydraulic functions

    Hydraulic levers or mini-levers within easy reach and up to 5 hydraulic functions enable the use of different attachments

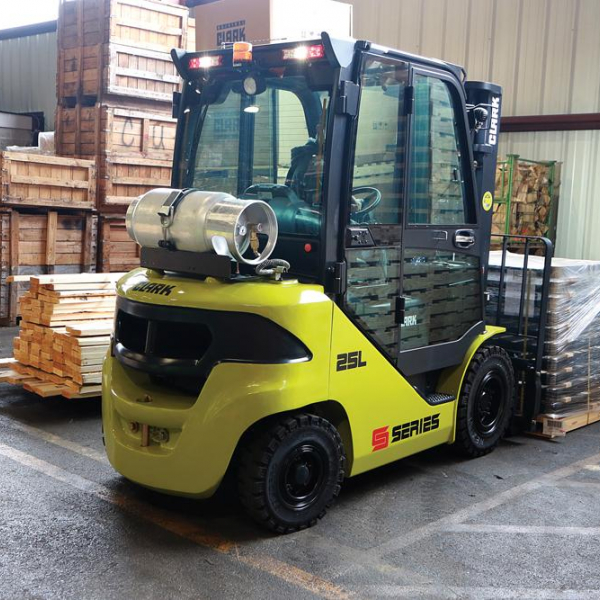

  • Driver cabin (fully equipped)
    Driver cabin (fully equipped)

    Driver cabin (fully equipped)

    • Heating with proportional heating control valve
    • double-section side door
    • sliding windows
    • Bluetooth radio with USB port
    • front and rear wiper
    • heated rear screen
    • cup holder, storage box and document holder
  • Air conditioning
    Air conditioning

    Air conditioning

    Excellent cooling performance (4.3 kW) with dehumidifier and integrated cooling and heating functionality

  • Integrated storage box
    Integrated storage box

    Integrated storage box

    Including 12 V power connection, USB charging port on request
