Electric pallet stacker
Pedestrian-operated machine
With lithium-ion battery
Load capacity: 1600 kg
RSE16
Overview

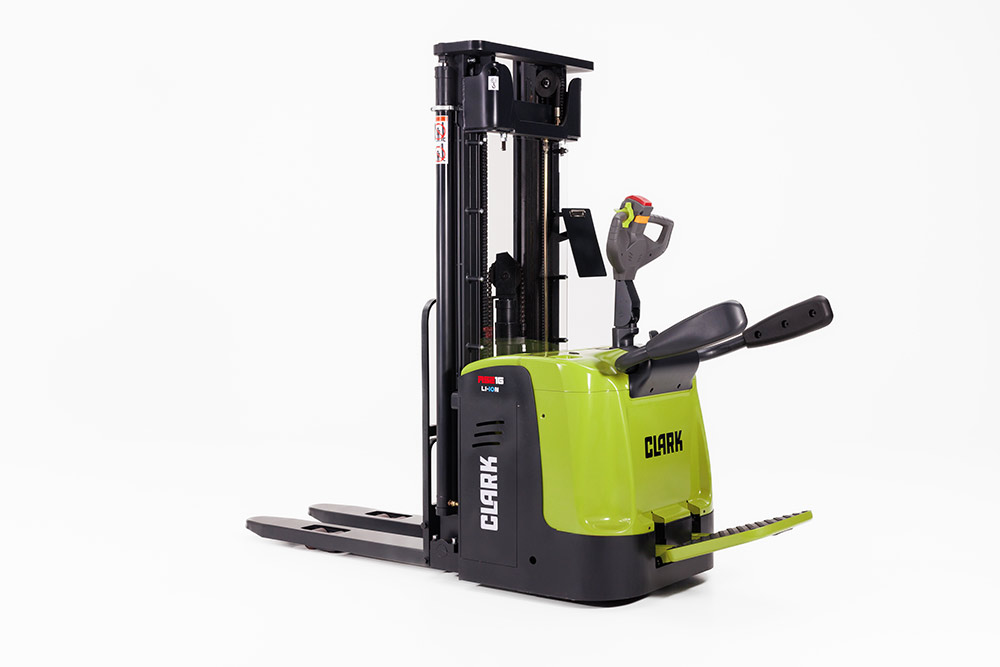

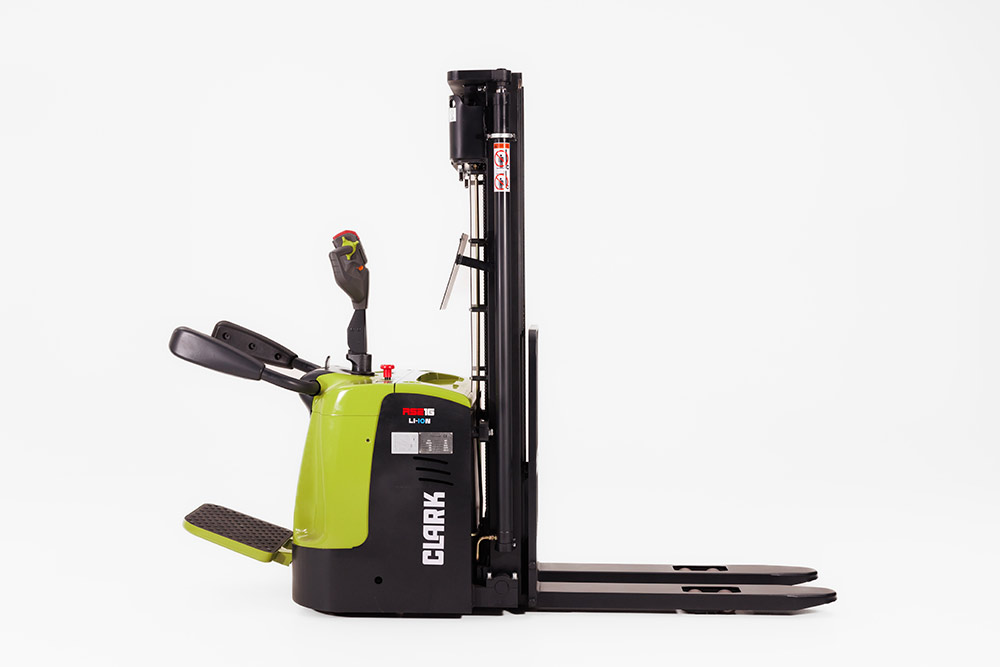

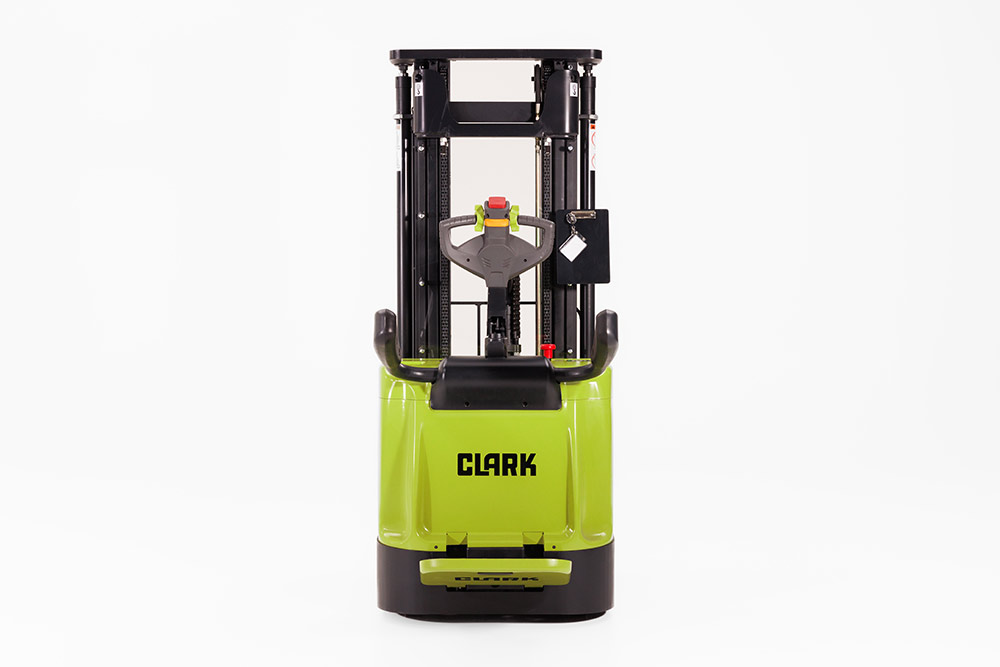

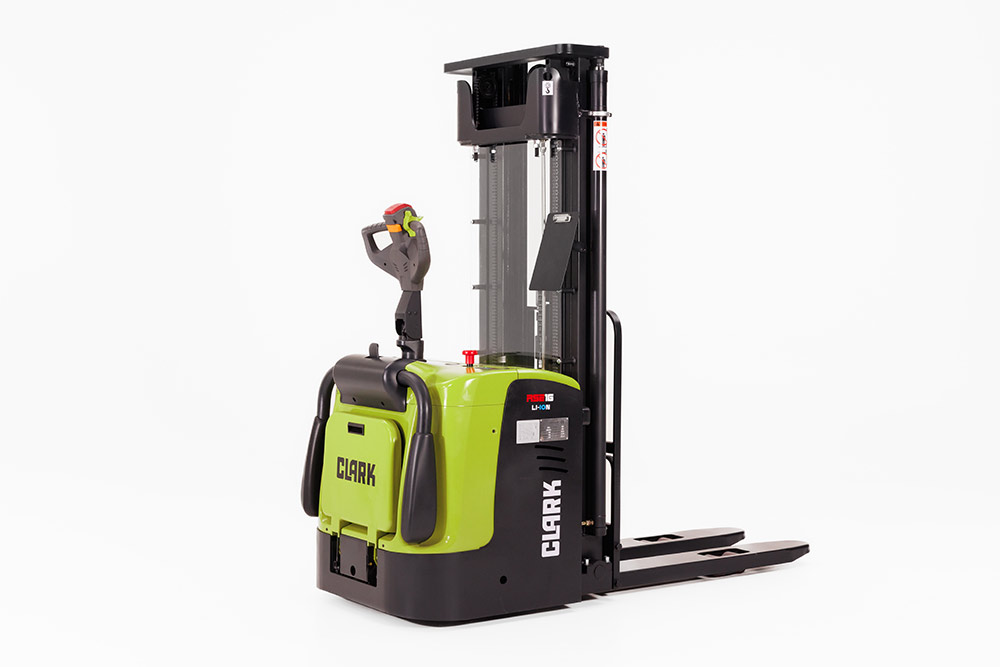

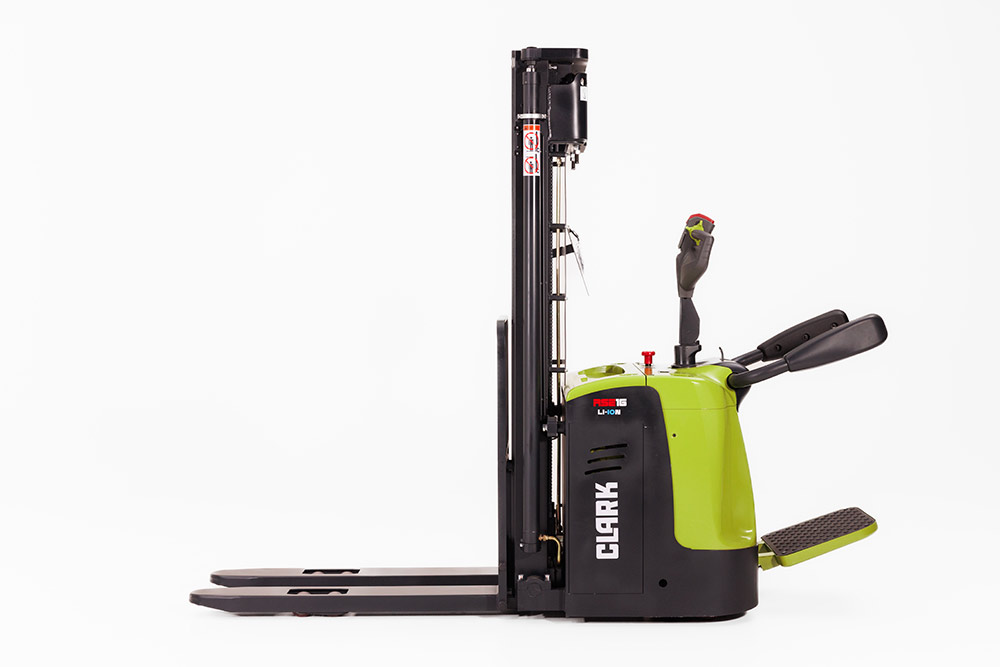

RSE16 - Efficient and stable
The RSE16 is designed for comfortable and efficient operation with a passenger. The standard power steering ensures smooth and precise handling, even on narrow paths or with heavy loads. The low step height of the driver's platform, at just 175 mm, makes it easy to get on and off frequently and reduces physical strain during shift work. Even the standard mast has free lift and allows the load to be lifted without changing the overall height of the truck – ideal for working in confined spaces.
The large, non-slip standing platform provides a secure footing while driving. The side safety bars with soft-grip surface increase the driver's stability when cornering. A particular advantage is that the safety bars can be adjusted by the driver directly on the platform without having to dismount. They can be activated for passenger operation or deactivated for precise storage at high lift heights – conveniently and without interrupting the work process.
The proportional hydraulic system enables sensitive lifting and lowering and supports precise positioning of the load, even on high shelf levels. The creep speed function allows controlled maneuvering in confined spaces or in narrow working areas.

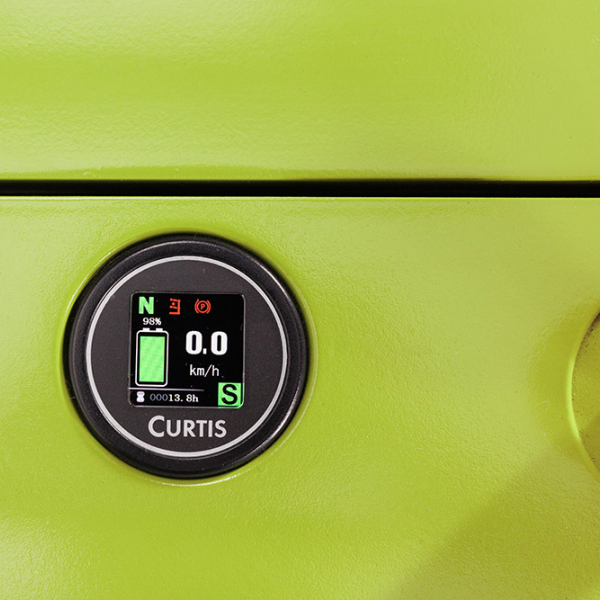

A multifunctional color display provides clear information about the vehicle condition, battery status and operating hours. Practical accessory solutions such as document holders, scanner holders or holders for stretch film rolls are available for additional convenience.
Various fork lengths from 1070 to 1600 mm allow flexible adaptation to different application requirements.
Features
-
Comfortable and efficient
Comfortable and efficient
-
Operator-friendly
Operator-friendly
-
Easy operation
Easy operation
-
Maintenance-friendly
Maintenance-friendly

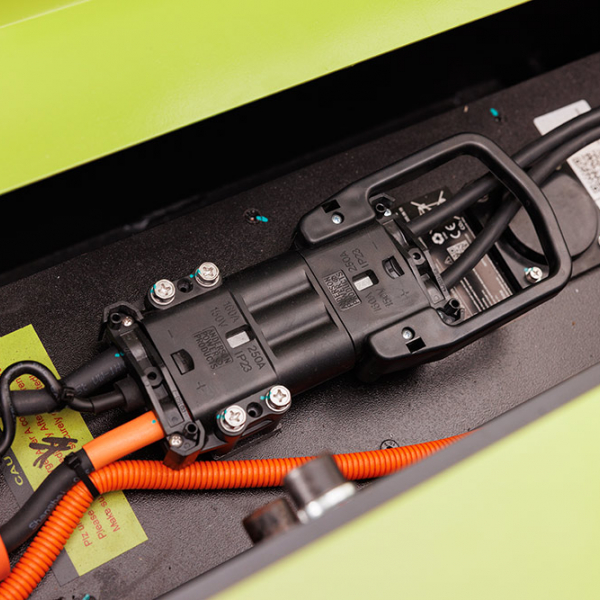

Li-Ion Technology
The RSE16 is equipped with lithium-ion technology to support high availability and short charging times for multi-shift operation. Two battery options are available:
Li-ion batteries are maintenance-free and can be opportunity charged without reducing service life. No ventilation zones are required, and routine maintenance such as water top-up is eliminated, supporting lower service costs over the truck’s service life.

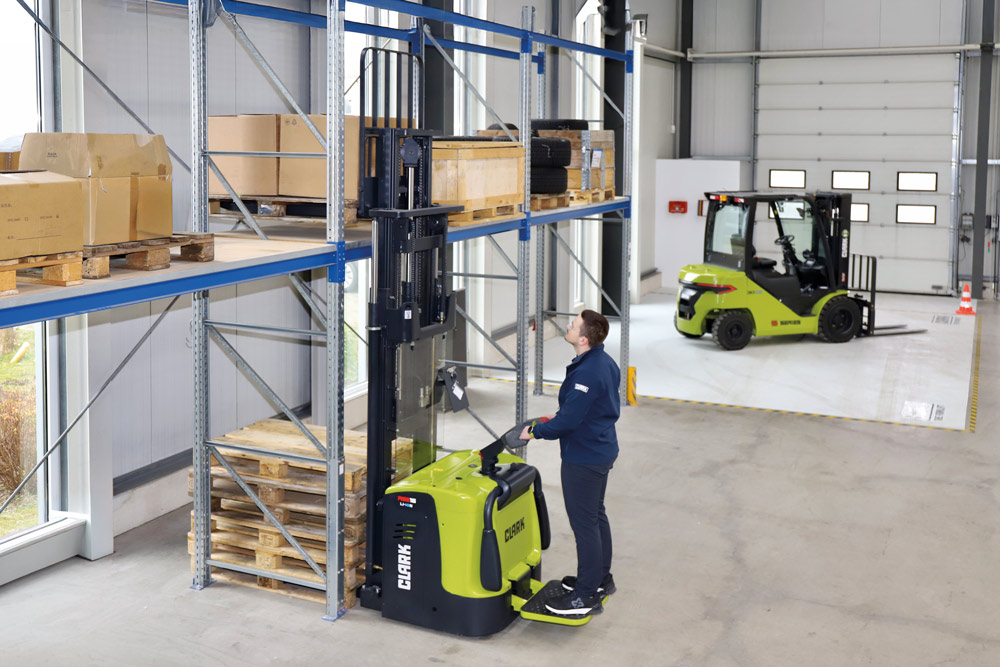

Driving Behaviour & Safety
The RSE16 supports stable, controlled driving for demanding transport and storage tasks. AC control enables smooth speed regulation, while the compact truck structure and low centre of gravity support safe handling, even at higher lift heights.
The four-wheel concept provides high stability. Side safety bars give additional support, particularly when cornering or driving at higher speeds. The soft-grip surface improves comfort and grip security.
Further safety features include:
The water- and dust-protected motor and brake unit supports reliability in continuous industrial use and protects key components from external influences.
Standard turtle mode supports particularly controlled manoeuvring in confined areas, including with the platform folded up in pedestrian operation. It supports precise positioning, for example when placing loads at higher racking levels or working in narrow aisles.

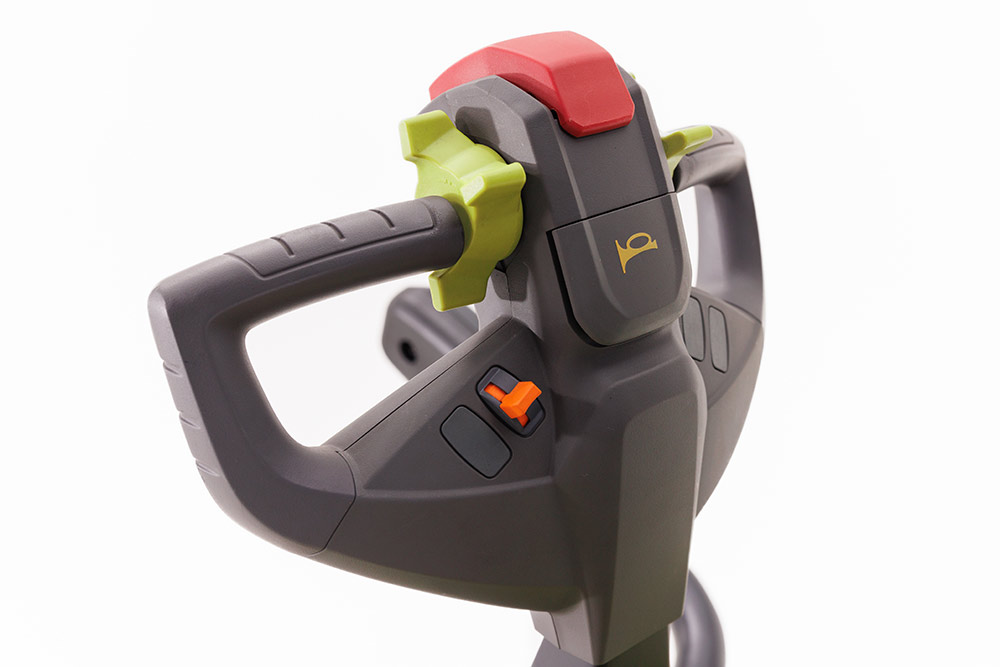

Operator-Friendly Design

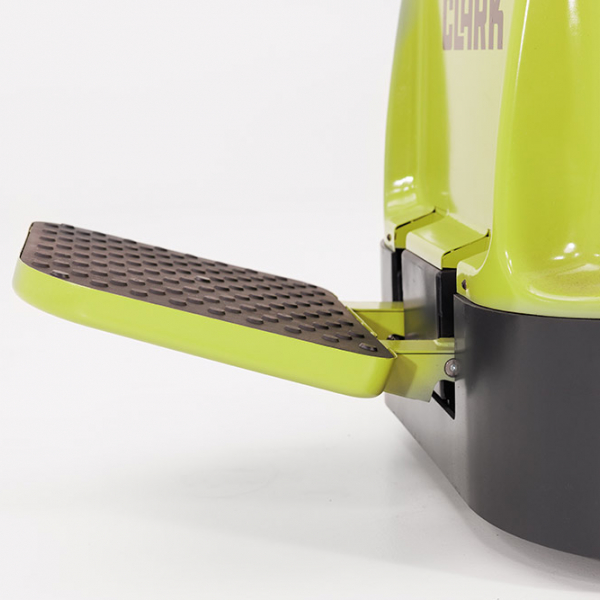

The large, non-slip operator platform provides secure footing while driving. Side safety bars with a soft-grip surface support the operator, especially when cornering. A key advantage is that the safety bars can be adjusted by the operator while remaining on the platform. They can be activated for driving and deactivated for precise work at higher lift heights, without interrupting the work process.
The proportional hydraulic system supports smooth, precise lifting and lowering and enables accurate load positioning, even at high racking levels. Turtle mode supports controlled manoeuvring in confined spaces or narrow working areas.
A colour display provides clear information on truck status, battery status and operating hours. Practical accessories such as A4 document holders, scanner holders or stretch film roll holders are available to support daily operation.
Selectable fork lengths from 1070 to 1600 mm allow flexible configuration for different applications.
(Note: Longer forks change load centre distances and can affect residual capacity at higher lift heights.)
Easy Maintenance
Easy Maintenance
The RSE16 is designed for low maintenance effort and straightforward service access. Modern CAN bus technology reduces wiring complexity and supports fast diagnostics. In the event of a fault, the error code display provides clear information, helping service technicians troubleshoot efficiently.
The one-piece service cover provides quick access to key components. Driving and lifting parameters can be adjusted via the display, enabling settings without additional devices.
Further service advantages:
Thanks to its robust construction and low-maintenance AC technology, the RSE16 is designed for a long service life and reliable use in daily operation.

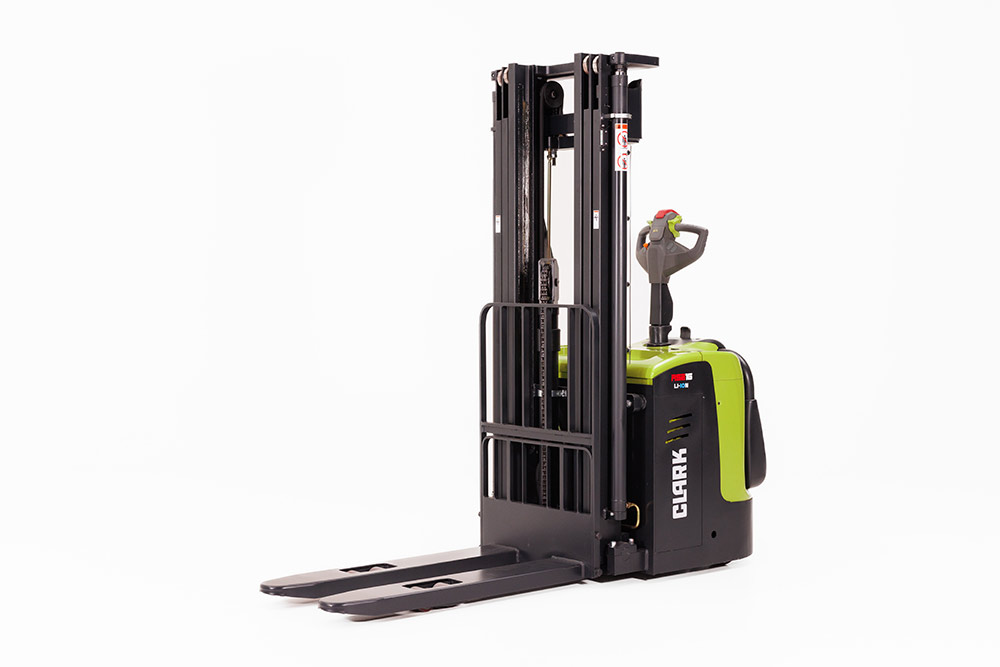

Masts & Performance Data
The RSE16 is available with mast options for demanding storage and retrieval tasks in ride-on operation. Standard masts cover lift heights from 2,500 to 3,500 mm and include free lift as standard, supporting safe work in areas with low doors, gates or clearance restrictions.
Triplex masts with lift heights from 4,500 to 5,600 mm are available for applications requiring higher lift heights. These variants also include free lift and support flexible handling in areas with restricted clearance heights.
The low centre of gravity supports stable and controlled handling across the full lift range. The compact chassis design supports precise manoeuvring, particularly at higher lift heights and in confined working areas.
Gallery
Video
Product video: Lithium-ion high-lift pallet truck
