Electric pallet stacker
Pedestrian-operated machine | Double-decker
Lithium-ion battery included
Load capacity: 1600 kg
SWX16i
Overview
Maximum efficiency and flexibility: The CLARK SWX16i high lift pallet truck with initial lift
The SWX16i high lift pallet truck from CLARK combines performance and versatility for efficient load handling in warehouse environments. With its initial lift, two loads can be moved simultaneously. This significantly increases goods handling. The 205 Ah Li-ion battery guarantees a long operating time. The vehicle also has practical extras such as a USB charging port and storage compartments. The proportional lift enables precise control and optimum adaptability. As the wheel arms can be raised, the SWX16i overcomes uneven ground with ease. This makes it ideal for demanding working environments.
| SWX16i | 1600 kg |
Features
-
Double-decker transport
Double-decker transport
The initial lift of the CLARK SWX16i high lift truck allows two loads to be moved simultaneously in double-deck operation. This speeds up goods handling and increases productivity.
-

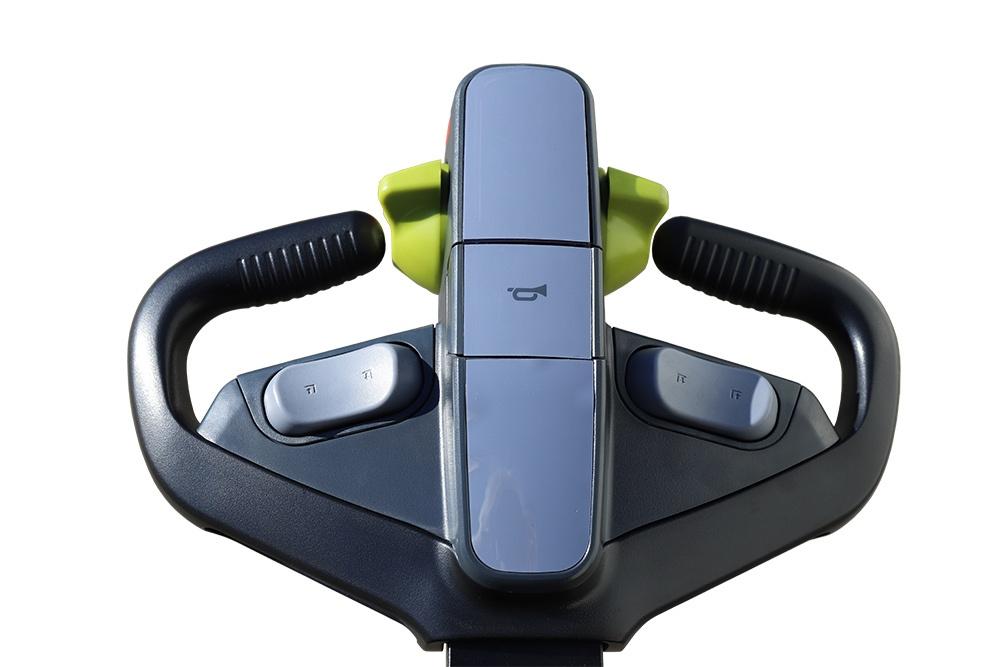

Ergonomic controls
Ergonomic controls
To ensure intuitive and fatigue-free operation of the vehicle, all controls are conveniently positioned in the ergonomic drawbar and can be operated by both right-handed and left-handed users. The fact that the drawbar is set long and low means that the operator can operate the vehicle from a safe distance. The operator also has an optimum view of the forks and can store and retrieve loads quickly and safely, even in narrow aisles.
-
Equipment features
Equipment features
The SWX16i impresses with its powerful and maintenance-free AC drive technology, which is supported by a 1.6 kW drive motor and a 4.5 kW lift motor. Additional safety is provided by the automatic speed reduction when the forks are raised. The standard proportional hydraulic control for inital lift and mast lift enables safe and precise storage and retrieval, even of sensitive loads.
-
USB charging port
USB charging port
The SWX16i is equipped with a practical USB charging port that allows mobile devices to be charged directly on the vehicle. This is particularly useful for smartphones, tablets or other gadgets required in the warehouse. Important means of communication are therefore always ready for use.
-
Overcoming uneven floors
Overcoming uneven floors
By raising the wheel arms, the vehicle effortlessly overcomes uneven ground, thresholds and ramps, which extends the range of applications and improves overall efficiency.
-
Lithium-ion battery
Lithium-ion battery
Even with intensive use and high availability requirements, the SWX16i is a good choice. The powerful 205 Ah Li-ion battery can be recharged effortlessly and without any loss of service life, so that the pallet truck is always ready for use. Recharging is conveniently possible at any 230 V socket. An external 24 V, 100 Ah charger is included in the scope of delivery.
-
Practical storage compartments
Practical storage compartments
The SWX16i also offers practical storage compartments that make everyday work easier. These compartments are positioned so that tools, documents and other important utensils are always within easy reach.
-
Mobile phone holder
Mobile phone holder
The SWX16i also offers a practical mobile phone holder, which is specially designed to keep mobile phones safe and easily accessible. This tray is within easy reach of the operator.
Lithium-ion power
Benefit from the advantages of the CLARK lithium-ion battery:
- Powerful and maintenance-free
- 24 V, 205 Ah for reliable performance
- Short charging times thanks to 24 V (100 A) charger
- Double the service life compared to conventional batteries
- Option for intermediate charging
- No battery change required
- Decentralised safe charging points directly on site
Safety
The SWX16i ensures maximum safety during operation thanks to several safety features: The proportional hydraulic control enables precise and smooth load movement for accurate lifting of loads. When setting down the load, the proportional valve ensures controlled load handling. In addition, the travelling speed is automatically reduced as soon as the load is lifted to ensure high stability. The rounded vehicle contour minimises potential danger spots, while the four-point support ensures maximum stability. The safety drawbar is attached to the bottom left of the vehicle. This ensures sufficient distance from the operator. A large safety collision switch on the drawbar provides additional protection during use.
Maintenance & Service
The SWX16i pallet truck is equipped with a tried-and-tested AC controller. This makes it extremely easy to maintain. In the event of a fault, the error code display provides precise information on the cause. This makes diagnosis easier for the service technician. The one-piece cover allows easy access for service and maintenance work. In addition, the service technician can easily programme the driving and lifting parameters via the vehicle display.
Gallery
