CLARK Electric High Lift Truck WSE16i with initial lift 1600 kg

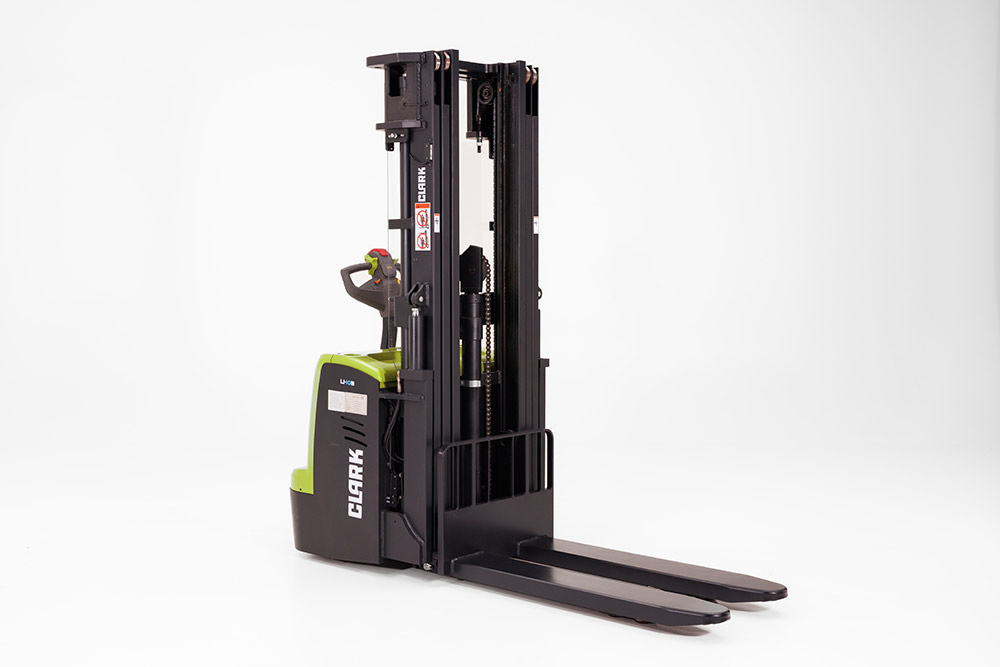

CLARK WSE16i

Electric pallet stacker

Pedestrian-operated machine
With lithium-ion battery
Load capacity: 1600 kg

WSE16

Request now

Gallery

Video

max. 1600 kg

max. 5600 mm

max. 6 km/h

1.5 kW

24 V / 230 Ah
24 V / 150 Ah (Option)

Overview

WSE16i Powerful and robust

The WSE16 and WSE16i models are robust electric pallet stackers for demanding industrial applications. They support fast work cycles, precise control and lift heights from 2,500 to 5,600 mm, covering a wide range of tasks in warehousing, production and logistics. Standard masts include free lift. Free lift enables the load to be lifted without changing the overall height of the truck, which is a clear advantage when working in areas with low clearance heights.

The WSE16 is the standard version without initial lift and is designed for classic storage and retrieval tasks. The WSE16i features an initial lift, providing
increased ground clearance on ramps and uneven surfaces and enabling double pallet transport. This improves flexibility in the material flow.

WSE16i

1600 kg

Features

Precise and powerful
Precise and powerful
- Standard proportional lift for smooth and precise lifting and lowering
- High lift speeds
- Robust mast and frame construction
Operator-friendly
Operator-friendly
- TFT colour display with clear operating information
- Optional equipment: PIN code activation, A4 document holder, scanner holder, Blue Light, load backrest
- Ergonomically positioned controls

Easy operation
Easy operation
- Standard masts with free lift: 2,500–3,500 mm
- Triplex masts with free lift: 4,500–5,600 mm
- Turtle mode for controlled manoeuvring in narrow areas
- WSE16i: initial lift for increased ground clearance and double pallet transport
- Fork length options from 1070 to 1600 mm
Maintenance-friendly
Maintenance-friendly
- CAN bus technology for simple diagnostics
- Water- and dust-protected drive motor
- Excellent access to electrical and hydraulic assemblies

Safety

Driving Behavior & Safety

AC control with regenerative braking supports smooth, controlled driving. The rounded truck contour helps reduce potential impact points, while the four-wheel concept provides high stability. The tiller arm positioned low on the left supports a safe distance between the operator and the truck frame.

Further safety features include:

Electromagnetic parking brake
Automatic lift cut-out at maximum lift height
Emergency reverse switch (belly switch) on the tiller arm
Overload protection via integrated pressure relief valve

The water- and dust-protected motor and brake unit supports reliability and service life in continuous industrial use.

The WSE16i also offers:

Increased ground clearance through initial lift
Safe driving over ramps and transitions
Double pallet transport capability

Mast & Performance Data

The WSE16 series offers mast options for different application requirements. Standard masts cover lift heights from 2,500 to 3,500 mm and feature free lift as standard. Free lift enables the load to be lifted without changing the overall height of the truck, which supports safe operation in areas with low doors, gates or other clearance restrictions.

Triplex masts with lift heights from 4,500 to 5,600 mm are available for applications requiring higher lift heights. These variants also feature free lift and support flexible handling when storing at higher racking levels.

The low centre of gravity supports stable and controlled handling throughout the entire lift range. The vertically arranged drive motor is highly efficient and supports a small turning radius for precise manoeuvring in confined areas.
