Electric pallet stacker
Pedestrian-operated machine | Mono mast
Optionally with lithium-ion battery
Load capacity: 1000 kg
WS10Mi
Overview

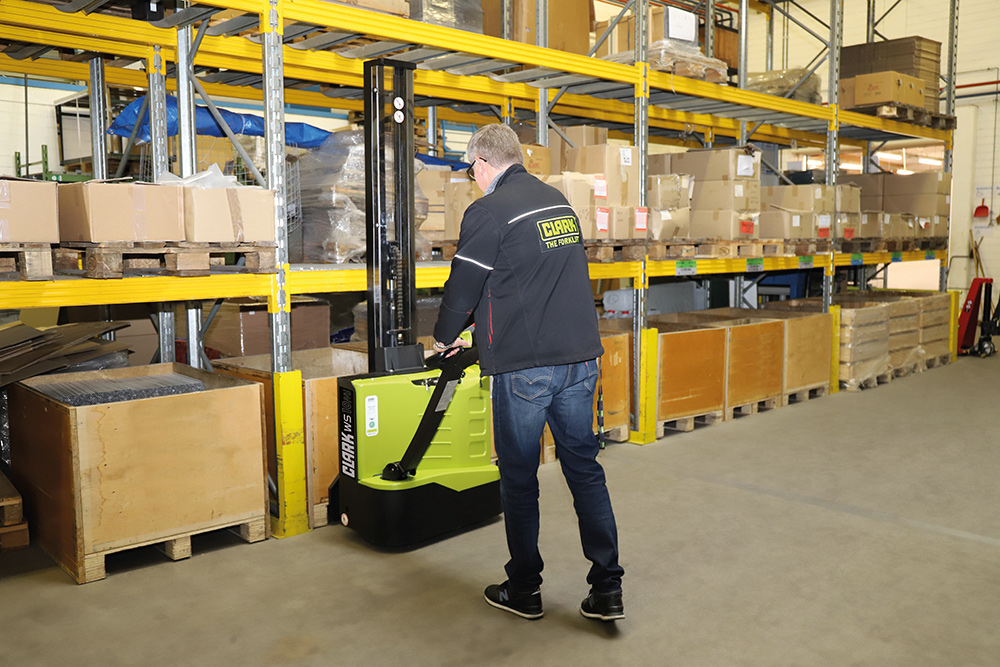

Ideal for light applications or as a mobile work table
The WS10Mi are the entry-level models in the high lift truck range. Ideal for transport over short distances, or can also be used as a mobile work table. The mono-lift trucks have a maximum load capacity of 1000 kg. This makes the high-lift trucks ideal helpers in a wide range of applications. All models in this series are suitable for light and occasional use. The WS10Mi is equipped with initial lift. This makes it excellent for use on uneven floors.
| WS10Mi | 1000 kg |
Features
-
Lithium-Ion-Battery
Lithium-Ion-Battery
Thanks to fast charging times with lithium-ion battery, the WS10Mi can be used almost without interruption. Recharging the Li-Ion battery (24 volts / 80 Ah) is possible through the integrated charger with 24 volts 30 at any 230 volt socket.
-
Low truck weight and compact
Low truck weight and compact
The compact design of this series enables it to be used in space-critical work areas as well as in very narrow aisles. Only a small amount of force is required to steer the manoeuvrable lift truck. This reduces the operator's workload. Due to the low service weight and the resulting lower floor load, use on intermediate levels is also possible.
-
Version with initial lift
Version with initial lift
The WS10Mi with initial lift can be used safely and precisely on small ramps and uneven floors, e.g. on weighing equipment.
-
Safety
Safety
The tiller is suitable for left and right-handed operators and enables precise operation of all drive and lift functions. Due to the large field of vision provided by the mast profiles, the operator always has the forks and the load in view. The mono masts also provide a good view of the fork tips. This ensures precise positioning of the unit and fast and safe pick-up of loads.
-
Battery and charging technology
Battery and charging technology
With maintenance-free block batteries and a built-in charger, the battery can be recharged at any 230-volt socket. This guarantees flexible and decentralised battery recharging. The truck display informs the operator about the battery charge status as well as the operating hours.
-
Ergonomic and safe tiller
Ergonomic and safe tiller
- Safe material handling
- Intuitive controls
- Suitable for left- and right-handers
Safety
The WS10Mi ensures maximum safety during operation thanks to numerous safety features: For high stability, the travelling speed is automatically reduced as soon as the load is lifted. The rounded vehicle contour minimises potential danger spots, while the four-point support ensures maximum stability. The safety drawbar is attached to the bottom left of the vehicle to ensure sufficient distance from the operator. A large safety collision switch on the drawbar provides additional protection during use.
Maintenance & Service
The WS10Mi pallet truck is equipped with tried-and-tested controllers, making it extremely easy to maintain. In the event of a fault, the error code display provides precise information on the cause. This makes diagnosis easier for the service technician. The one-piece cover allows easy access for service and maintenance work. In addition, the service technician can easily programme the driving and lifting parameters via the vehicle display.
Gallery
