Electric low lift pallet truck
Pedestrian-operated machine
Optionally with lithium-ion battery
Capacity: 2000 kg
WPX20
Overview
Compact. Highly maneuverable. Safe operation
The WPX20 low lift pallet truck optimizes material flow with its AC drive technology and the CLARK SpeedControl (CSC). Due to its excellent maneuverability and easy control, the WPX20 is perfect for heavy loads up to 2,000 kg.
| WPX20 | 2000 kg |
Features
Features and benefits
- Powerful and maintenance-free AC drive technology with 1.1 kW capacity
- Stops automatically on slopes and ramps
- Tiller swiveling over 180° for small turning radius
- More safety via the CLARK SpeedControl system (CSC) which automatically adjusts the maximum travel speed depending on the tiller position
Comfort and ergonomics
- Support rollers with suspension for highest degree of stability
- Tandem load rollers as standard configuration
- Convenient integration of all driving and lifting switches in the tiller
- Battery discharge indicator in clearly visible position

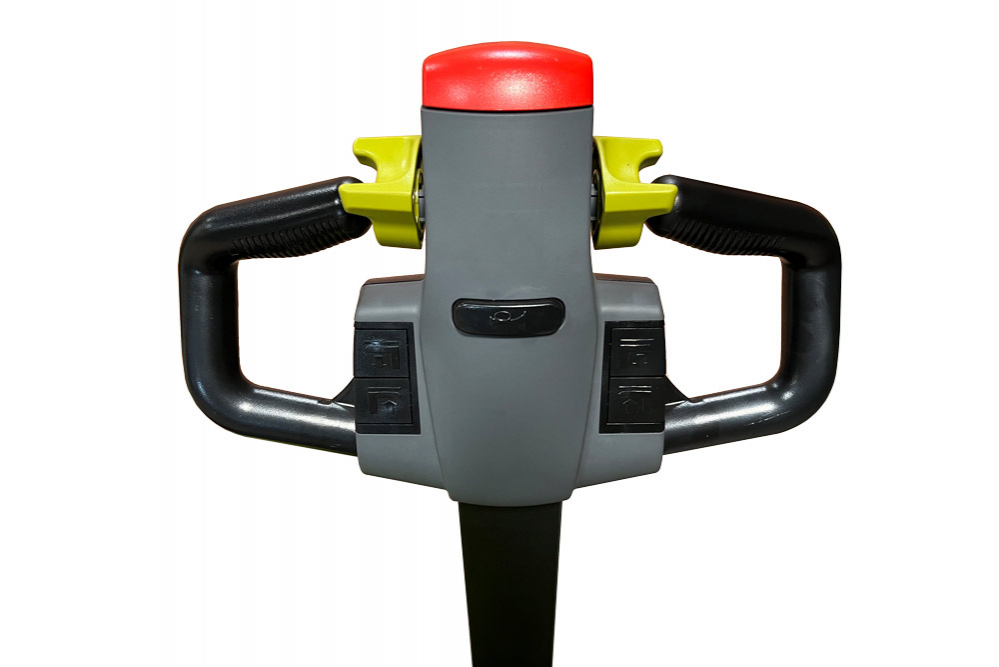

Ergonomic and safe tiller
- Simple and fast implementation of control commands
- Automated soft deceleration and return into the neutral position when releasing the tiller
Automatic parking brake
- Safe operation on slopes and ramps
- Release of the automatic parking brake when driving switch is activated

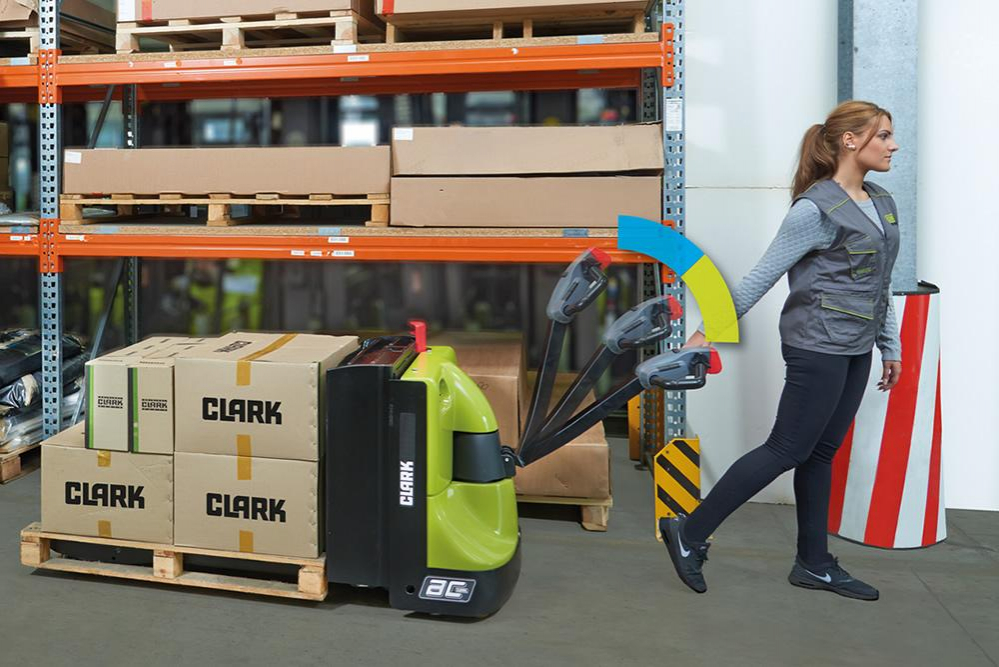

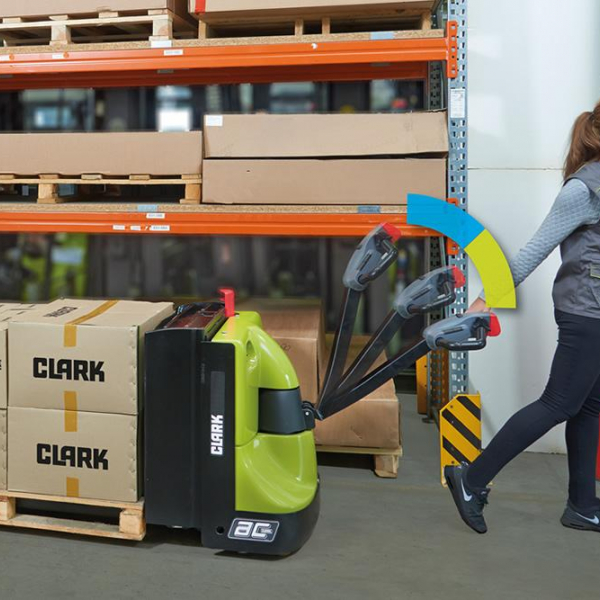

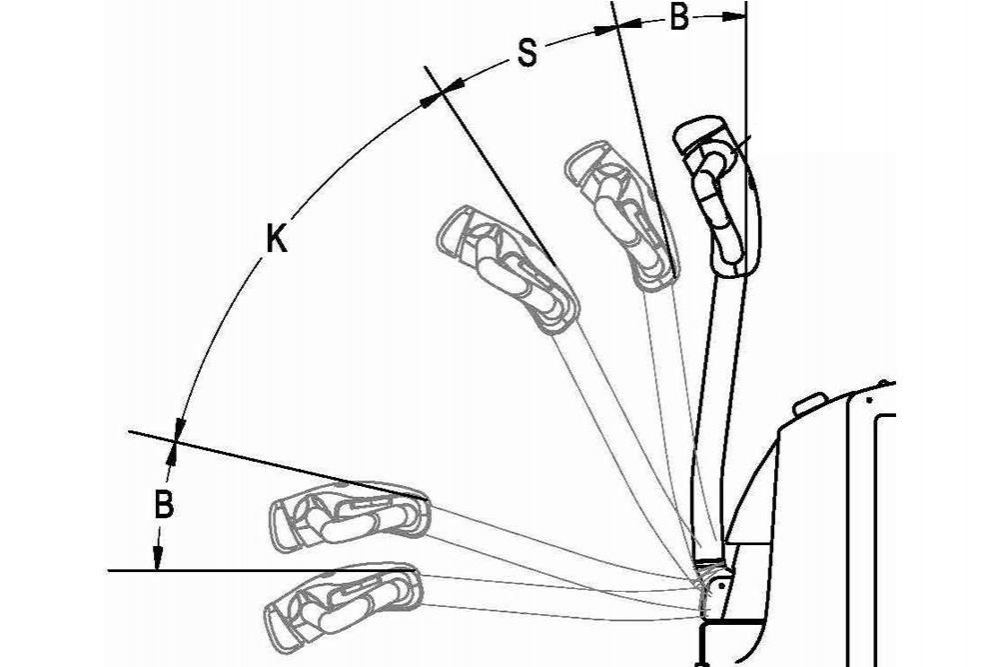

CLARK SpeedControl (CSC)
- Makes it easier to maneuver, in particular when operating the vehicle in smaller spaces
- Depending on the tiller position, the maximum travel speed is adjusted automatically
- In the Speed Control mode (S), the maximum travel speed is controlled; this ensures safe and swift positioning
- If the tiller is in normal drive mode (K), maximum travel speed can be reached
All parameters can be customized as per the customer’s request.
Ergonomic and safe
- Programmable for customized driving
- Simple and fast implementation of control commands
- Automated soft deceleration and return into the neutral position when releasing the tiller
- Ergonomic tiller heads
- Identical control of all driving commands for left- and right-handed users
Safety
due to electromagnetic brakes preventing unsupervised rolling of the vehicle, also on ramps.
Powerful and maintenance-free AC drive technology
with a capacity of 1.1 kW.
-
Ergonomic and safe
- Programmable for customized driving
- Simple and fast implementation of control commands
- Automated soft deceleration and return into the neutral position when releasing the tiller
- Ergonomic tiller heads
- Identical control of all driving commands for left- and right-handed users
-
Safety
due to electromagnetic brakes preventing unsupervised rolling of the vehicle, also on ramps.
Powerful and maintenance-free AC drive technology
with a capacity of 1.1 kW.
-
Added safety
via the CLARK SpeedControl system (CSC) which automatically adjusts the maximum travel speed depending on the tiller position.
-
Reliability and serviceability
- One-piece hood for easy access for maintenance
- Strong structure with metal battery cover
- Battery compartment for batteries of up to 225 Ah
Battery

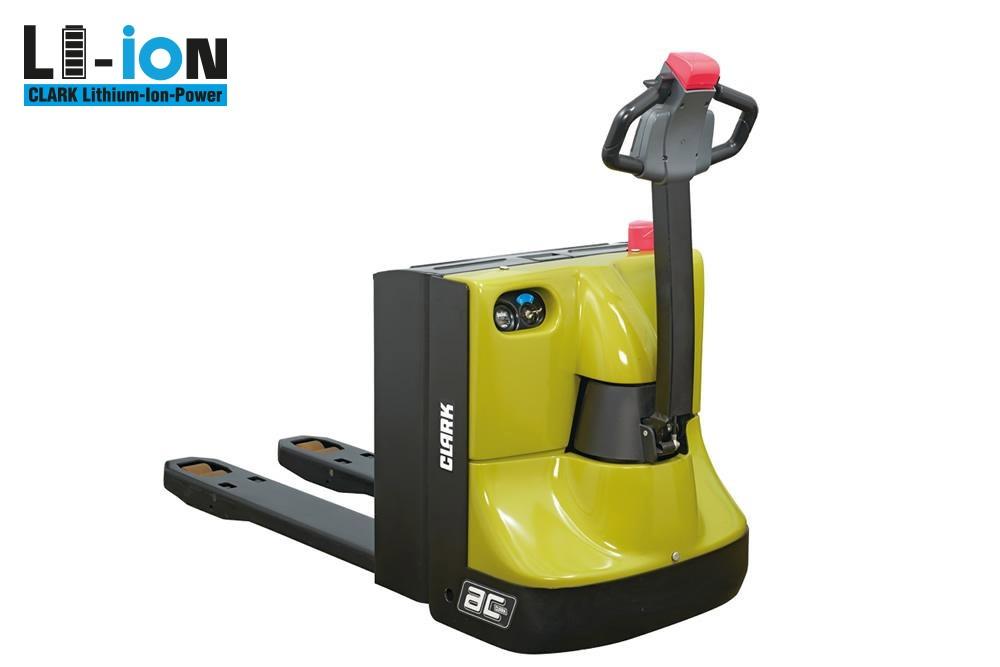

Lithium-Ion Battery
For intensive applications, such as multi-shift operation, where the focus is on high availability, the WPX20 is also available with a lithium-ion battery (205 Ah). The Li-Ion battery can be easily recharged without limiting the service life. The battery can be recharged at any 230-volt socket. In only 10 minutes, 7 % of the battery capacity can be recharged.
Additionally, Li-Ion technology not only enhances productivity but also results in significant cost savings in terms of maintenance, infrastructure, and battery replacement. This makes Li-Ion batteries a cost-effective choice for operators seeking high performance, durability, rapid charging capabilities, and robust safety standards.
Learn more about CLARK Lithium-Ion technology
Maintenance & Service
Low operating costs due to simple maintenance
The use of proven AC controllers makes the WPX20 pallet truck an extremely maintenance-friendly warehouse helper. Should a malfunction nevertheless occur, the error code indication in the display provides the service technician with information about the possible cause. The truck offers easy access for service and maintenance work. In addition, the service technician can easily programme all driving parameters via the display.
