Stand-up Reach Truck CRX10-25FL

Capacity: 1000 - 2500 kg @ 500 mm LC

CRX10/13FL
CRX14/15/18/20/25FL

 24 Volt  CRX 10  1000 kg     CRX 13  1300 kg
 48 Volt  CRX 14  1400 kg    CRX 15  1500 kg    CRX 18  1800 kg    CRX 20  2000 kg



Brochure
SpecSheet



Strong and Powerful
with Upgraded Ergonomic!

With the CLARK electric stand-up reach truck in 24 Volt or in 48 Volt technology, you can move your loads in a safe and efficient way at extremely low operating costs. The CLARK electric reach trucks are used in applications with confined spaces where it is important to have a cost-effective and ergonomic truck with a safe and intuitive operating concept.

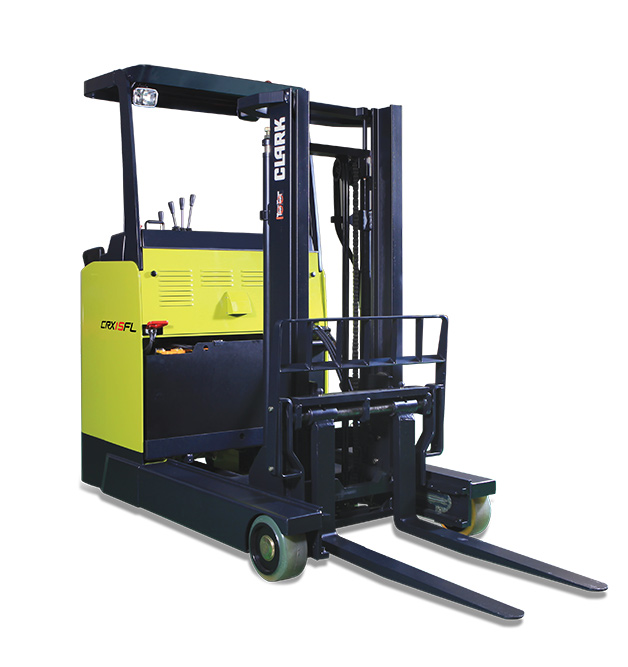

Stand up Reach Truck CRX10-25FL



  • CLARK STAND-UP REACH TRUCK CRX10-25FL
  • CLARK STAND-UP REACH TRUCK CRX10-25FL
  • CLARK STAND-UP REACH TRUCK CRX10-25FL
  • CLARK STAND-UP REACH TRUCK CRX10-25FL
  • CLARK STAND-UP REACH TRUCK CRX10-25FL



    max. 2500 kg

    max. 2500 kg

    CRX10/13FL max. 5500 mmCRX14/18FL max. 7000 mmCRX20/25FL max. 7500 mm

    CRX10/13FL max. 5500 mm
    CRX14/18FL max. 7000 mm
    CRX20/25FL max. 7500 mm

    CRX10/13FL max. 9.6 km/hCRX14/18FL max. 10.4 km/hCRX20/25FL max. 10.2 km/h

    CRX10/13FL max. 9.6 km/h
    CRX14/18FL max. 10.4 km/h
    CRX20/25FL max. 10.2 km/h

    CRX10/13FL 4.2 kWCRX14-25FL 8.3 kW

    CRX10/13FL 4.2 kW
    CRX14-25FL 8.3 kW

    CRX10/13FL max. 24 V 400 AhCRX14FL max. 48 V 210 AhCRX15/18FL max. 48 V 280 AhCRX20/25FL max. 48 V 335 Ah

    CRX10/13FL max. 24 V 400 Ah
    CRX14FL max. 48 V 210 Ah
    CRX15/18FL max. 48 V 280 Ah
    CRX20/25FL max. 48 V 335 Ah



    Features

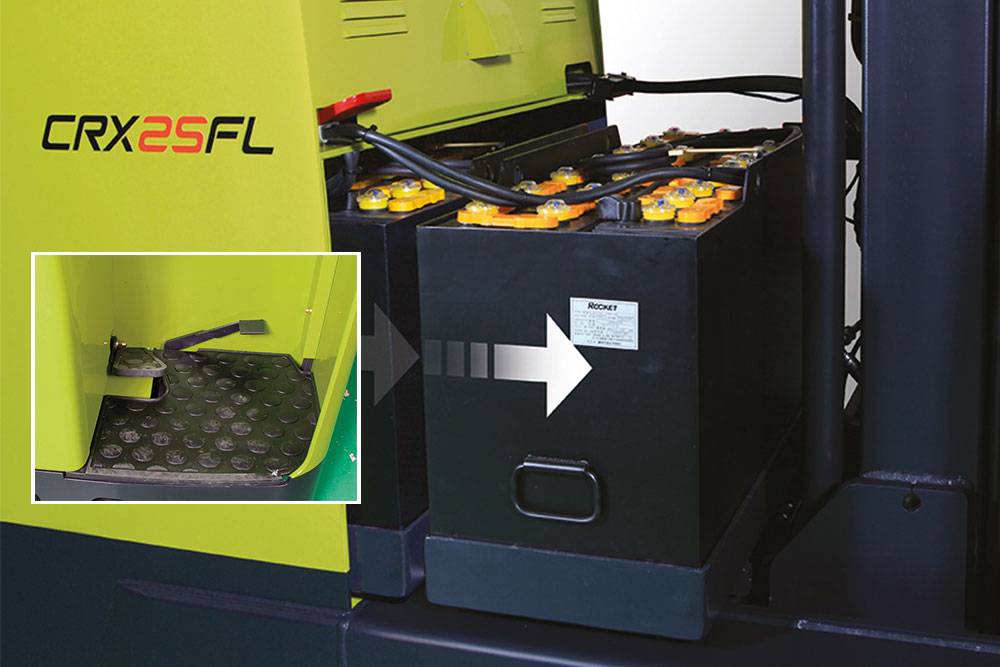

    • Easy Battery Access
      Easy Battery Access

      Easy Battery Access

      The battery can be moved out of the frame along with the mast, allowing easy and quick battery maintenance. A lever in the footwell can be used to release the battery lock and activate the slide-out process.

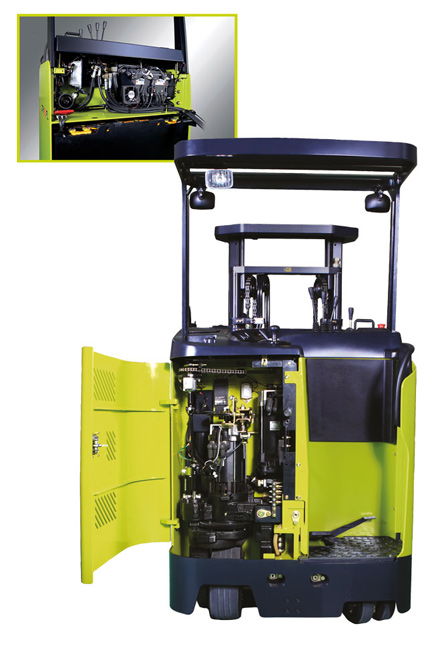

    • Maintenance Made Easy
      Maintenance Made Easy

      Maintenance Made Easy

      Maintenance is made easy with convenient access. This reduces the downtime of the truck and helps maximise durability. The bonnet can be opened wide, allowing service mechanics to do maintenance work from a standing position.

      Further electric parts including the controller are installed behind an easy access panel behind the mast.

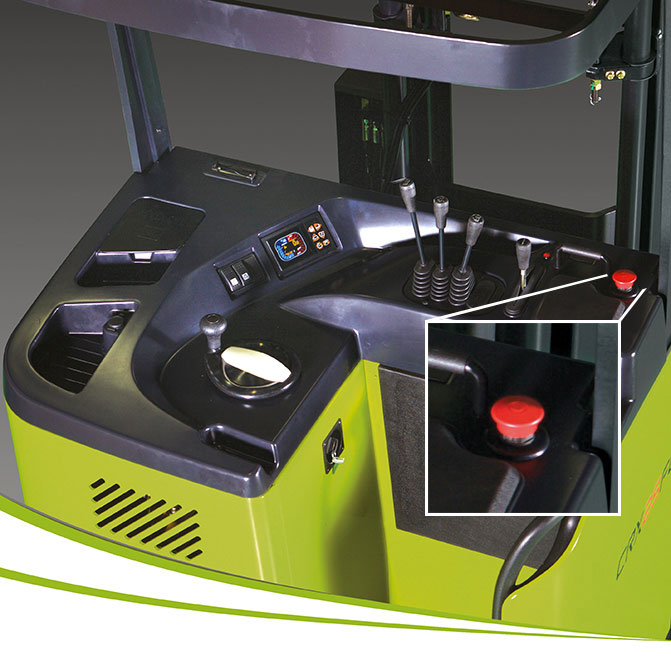

    • Ergonomic Workplace
      Ergonomic Workplace

      Ergonomic Workplace

      Storage boxes for keys and a document holder clip provide the operator with several options for storing various items near the operator compartment.

      In addition, the operator is able to quickly access the emergency stop button, as it is easy to reach at all times and ensures a safe application.

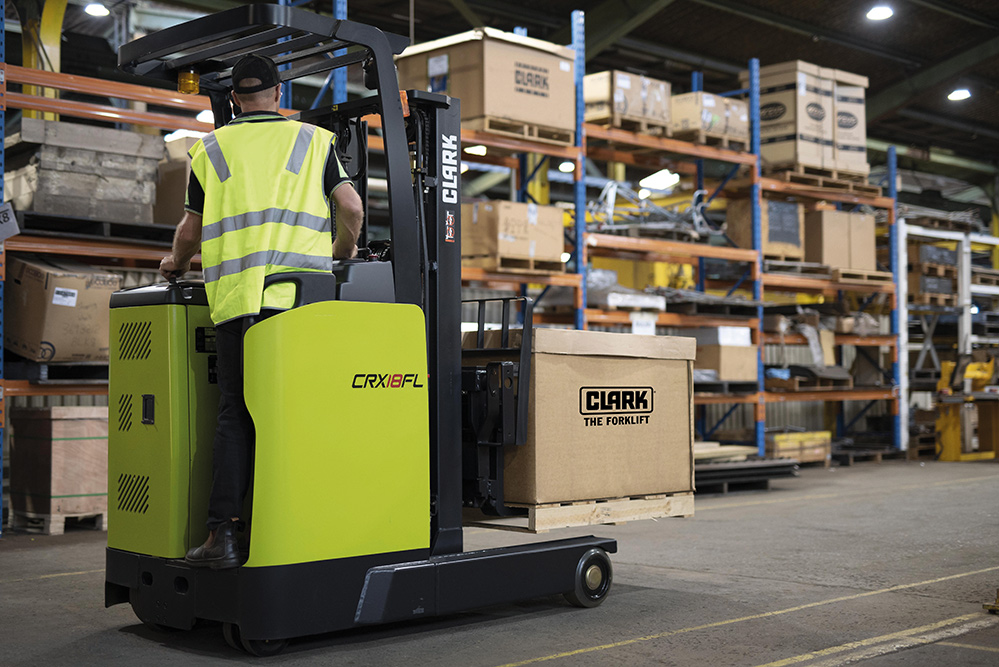

    • Selectable Drive Modes
      Selectable Drive Modes

      Selectable Drive Modes

      Three individually programmable modes of operation (Eco-Normal-Power), as well as an additional crawl speed function, allows the truck be optimally adapted to all relevant work applications.

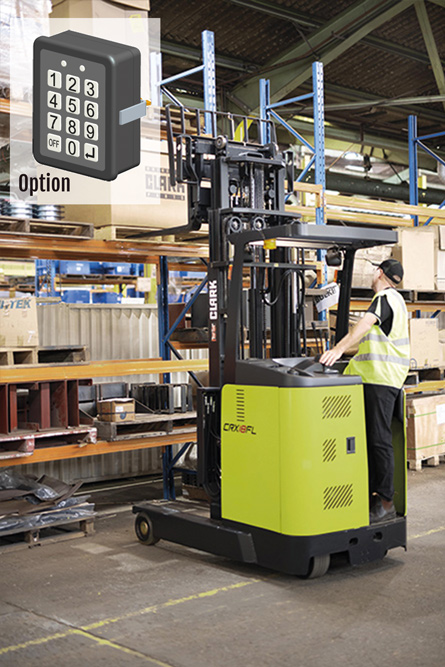

    • Activation via PIN-Code
      Activation via PIN-Code

      Activation via PIN-Code

      For keyless activation, via a four-digit Pin, the Pin-Code access can be chosen as an option. With the Pin-Code option installed, the truck will have an automatic shutdown timer in addition. The driving characteristics are then individually programmable for each Pin so that different drivers can have their own individual driving profiles.



    CLARK STAND-UP REACH TRUCK CRX10-25FL
    Wide Entrance

    Wide Entrance

    The wide entrance (370 MM CRX18FL) and compartment space provides a comfortable and safe work environment.

    Adjustable Body Cushion

    Adjustable Body Cushion

    Height control function allows customisation of the waist rest to suit individual preference.

    Precise Hydraulic Controls

    Precise Hydraulic Controls

    The truck can be operated via ergonomically arranged hydraulic levers. The sensitive control levers are made to operate the unit over longer operating hours, and enhances the work efficiency.

    Low Operating Costs

    Low Operating Costs

    Expensive gadgets that are unnecessary for most purposes are completely avoided. The result is very good value for money. In addition, all components are easily accessible for easy maintenance.

    LCD Monitor & Adjustable Operating Modes

    LCD Monitor & Adjustable Operating Modes

    It is easy to monitor the performance of the CRX-Series and check the current truck status. The LCD monitor is providing colored notifications to the operator. This makes it easy to adjust the driving behavior when needed or check the battery status.

    Anti-roll Down Function

    Anti-roll Down Function

    A safe application in uneven areas is ensured by the automatic electric brake. When no longer accelerating the electric brake is automatically engaged. The CRXFL-Series is held stationary - even if stopped on a gradient. Therefore, the operator has the truck under control at all times.

    Effortless Handling

    Effortless Handling

    The short diameter of the steering wheel with an ergonomically molded knob ensures great control and allows the operation of the unit with accuracy. In addition, the fatigue of the operator will be reduced.

    Powerful Motors & Controller

    Powerful Motors & Controller

    The traction motor with 4.2 kW power and AC technology ensures excellent acceleration. A powerful German AC motor made by Schabmüller is used as well as an Italian Controller made by ZAPI.

    • Wide Entrance

      Wide Entrance

      The wide entrance (370 MM CRX18FL) and compartment space provides a comfortable and safe work environment.

    • Adjustable Body Cushion

      Adjustable Body Cushion

      Height control function allows customisation of the waist rest to suit individual preference.

    • Precise Hydraulic Controls

      Precise Hydraulic Controls

      The truck can be operated via ergonomically arranged hydraulic levers. The sensitive control levers are made to operate the unit over longer operating hours, and enhances the work efficiency.

    • Low Operating Costs

      Low Operating Costs

      Expensive gadgets that are unnecessary for most purposes are completely avoided. The result is very good value for money. In addition, all components are easily accessible for easy maintenance.

    • LCD Monitor & Adjustable Operating Modes

      LCD Monitor & Adjustable Operating Modes

      It is easy to monitor the performance of the CRX-Series and check the current truck status. The LCD monitor is providing colored notifications to the operator. This makes it easy to adjust the driving behavior when needed or check the battery status.

    • Anti-roll Down Function

      Anti-roll Down Function

      A safe application in uneven areas is ensured by the automatic electric brake. When no longer accelerating the electric brake is automatically engaged. The CRXFL-Series is held stationary - even if stopped on a gradient. Therefore, the operator has the truck under control at all times.

    • Effortless Handling

      Effortless Handling

      The short diameter of the steering wheel with an ergonomically molded knob ensures great control and allows the operation of the unit with accuracy. In addition, the fatigue of the operator will be reduced.

    • Powerful Motors & Controller

      Powerful Motors & Controller

      The traction motor with 4.2 kW power and AC technology ensures excellent acceleration. A powerful German AC motor made by Schabmüller is used as well as an Italian Controller made by ZAPI.

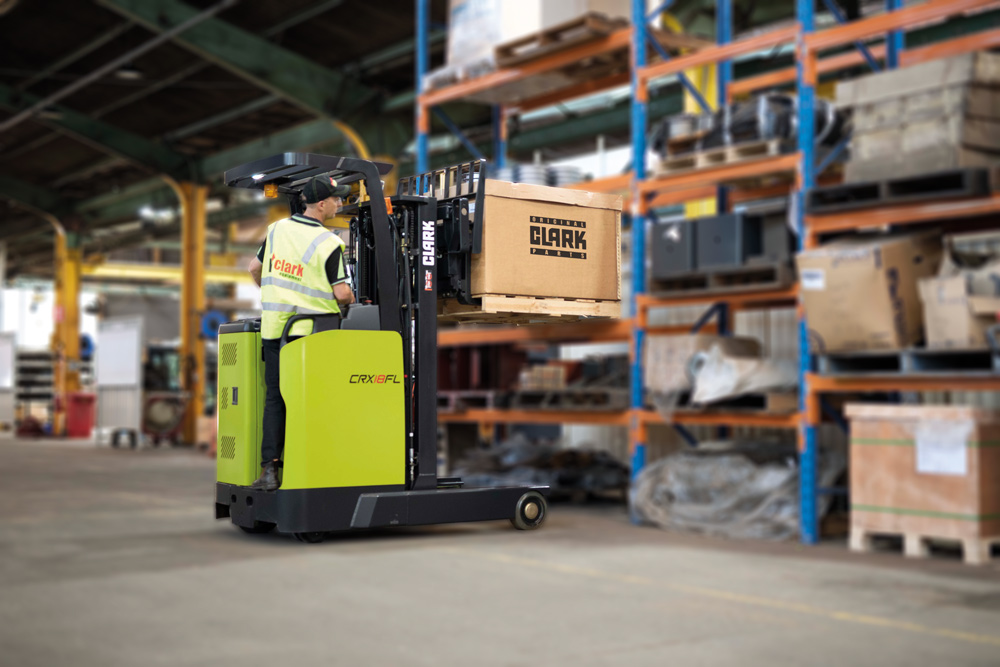

    Speed Regulation in Curves

    Speed Regulation in Curves

    • Automatic deceleration when cornering proportional to the steering angle
    • Reduces centrifugal power affecting the driver
    • Increases safety during transport

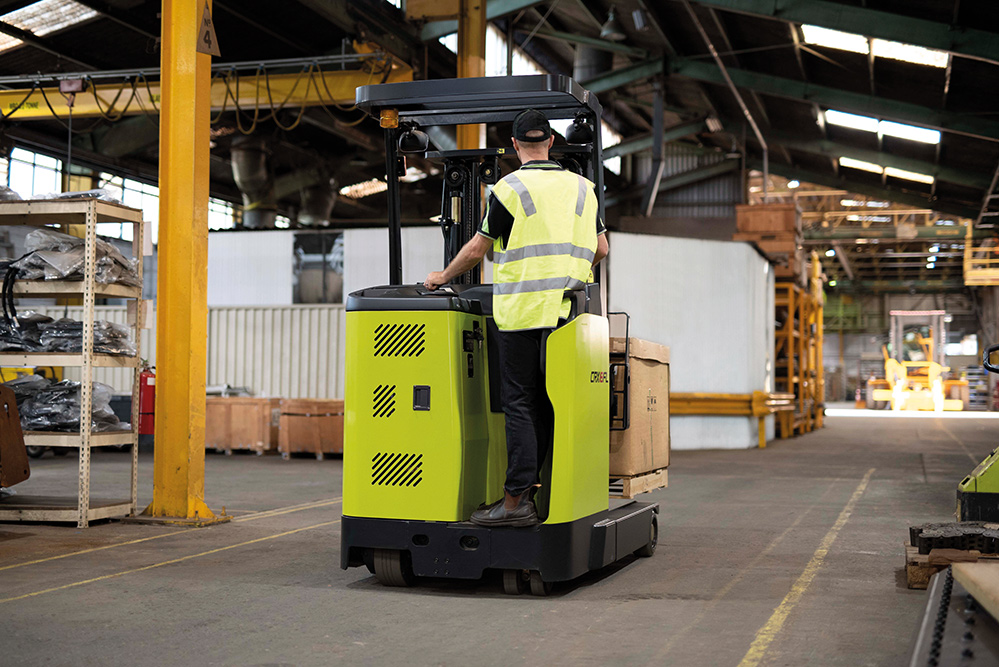

    Clear View Concept

    Clear View Concept

    An optimal arrangement of chains and hoses allows a clear view of the load. The overhead guard bars allow excellent upward visibility. Furthermore, an easy to ready multi-coloured, high-contrast TFT-display is part of the standard equipmentof this series.

    Low Floor Height

    With a step height of just 315 mm (CRX18FL) to enter into the operator compartment, it is easy for operators to get on and off the unit day by day.
