CLARK Forklift truck with diesel or LPG drive GTS20 / GTS25 / GTS30 / GTS33 2000 - 3300 kg

CLARK GTS20-33

GTS20-33

Forklift with diesel or LPG drive

Superelastic or pneumatic tyres
Capacity: 2000 - 3300 kg @ 500 mm LC

GTS 20/25/30/33


max. 3300 kg
max. 3300 kg
max. 7315 mm
max. 7315 mm
DSL max. 22.6 km/hLPG max. 19.1 km/h
DSL max. 22.6 km/h
LPG max. 19.1 km/h
DSL 47.8 kWLPG 48.7 kW
DSL 47.8 kW
LPG 48.7 kW
min. 3955 mm
min. 3955 mm




Overview

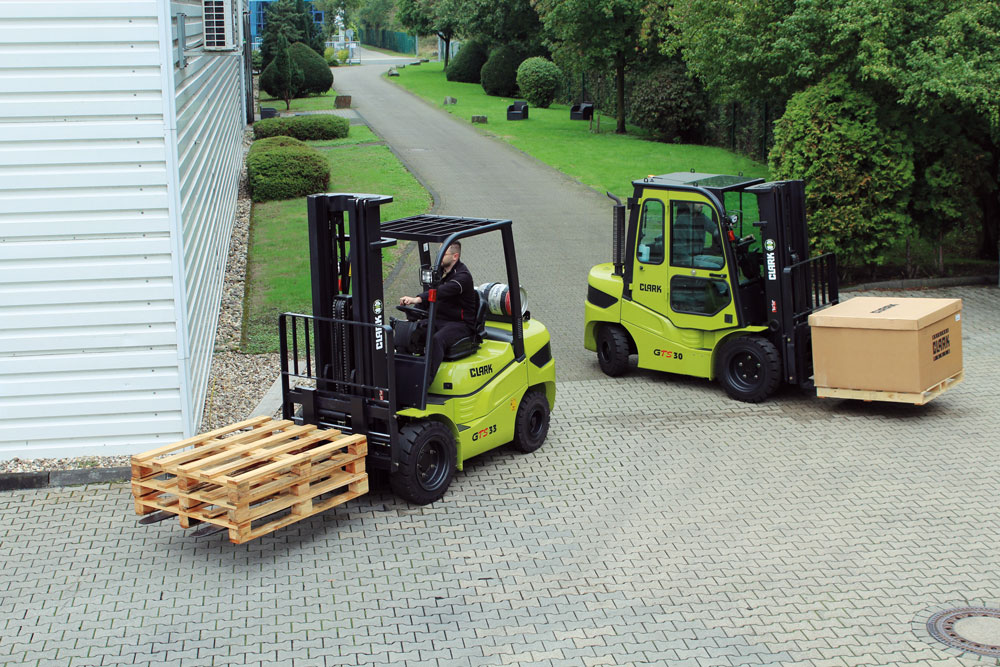

Efficient counterbalance trucks featuring high performance at low total cost

Efficient counterbalance trucks featuring high performance at low total cost

A solid construction with high-quality components is used for the GTS-Series. The standard wet disc brakes and the split transmission make this series extremely robust and reliable. Thanks to mounted hydraulic levers on the hood and plenty of legroom for the driver, this series is suitable for intensive applications.

GTS20 2000 kg - GTS25 2500 kg
GTS30 3000 kg - GTS33 3300 kg





Features

Operator’s cabin: From rain protection to a fully featured cab with air conditioning

Operator’s cabin: From rain protection to a fully featured cab with air conditioning

Various cab types are available for the driver’s compartment of the GTS-Series. To ensure that you get the right solution for your application, the
following cabins are offered:

  • Rain protection (roof only)
  • Weather protection (roof and windscreen)
  • Partial cabin (roof, front and rear window)
  • Fully equipped cabin

The full cab with two-part driver’s doors can be opened by 180° and fixed to the cab frame. This allows operating these trucks with open doors, for example during summertime. A heated rear window, easily accessible storage compartments, and a radio with Bluetooth function complete this comfortable, full cab.

Available safety features:Available safety features:

Available safety features:

  • Highly visible orange safety seat belt
  • Automatic neutral position of the driving direction if the belt is not closed
  • Blue LED warning lights
  • CLARK SafeView@360 camera system, so that the driver can see the driver has a clear view of everything around the truck
  • Hydraulic accumulators ensure that loads do not bounce even on uneven floors to prevent loads from bouncing.

CLARK VMS-System (Vertical Mast System)

By activating this function, the tilting process of the mast stops automatically in the vertical position when tilting forward or backward.





BUILT TO LAST

  • GTS20-33FL Eyecatcher

    Our forklifts are "Built to last”

    Our trucks are extremely robust and durable. Therefore, only durable and already proven components are installed in the CLARK GTS-Series. Without easily damaged items, the maintenance costs can be kept extremely low to reduce the overall costs.





Highlights


GTS20-33
Blue LED warning lights

Blue LED warning lights

The blue LED warning lights provide a visual warning.

Driver’s seats

Driver’s seats

The driver’s seat is available with either mechanical suspension or air suspension. Different versions with orange safety belt, side safety bars or armrests.

Fork positioners with separate sideshift

Fork positioners with separate sideshift

Increases the efficiency and flexibility of the GTS-Series. More handling capacity can be achieved especially when the load widths change frequently. CLARK fork positioners have separate sideshift.

Rear grab handle with horn

Rear grab handle with horn

Increased safety and more comfort for the driver, an advantage when frequently driving backwards.

Engine bonnet cover

Engine bonnet cover

The cover in black increases driver comfort in the interior. Thanks to the artificial leather finish, the cover is easy to clean and is available for all cab variants.

Wide drive tyres or Dual drive tyres

Wide drive tyres or Dual drive tyres

The GTS-Series can be equipped with wide drive or dual drive tyres on the drive axle to improve traction and stability when cornering.

Safe entry and exit

Safe entry and exit

The driver can reach his ergonomic workplace comfortably and safely via a large, low-set and non-slip step. The footwell is generously designed so that the driver has enough space even when wearing safety shoes.

Robust mast construction

Robust mast construction

  • Nested mast profiles
  • 6-roller fork carriage as standard
  • Blue LED warning lights

    Blue LED warning lights

    The blue LED warning lights provide a visual warning.

  • Driver’s seats

    Driver’s seats

    The driver’s seat is available with either mechanical suspension or air suspension. Different versions with orange safety belt, side safety bars or armrests.

  • Fork positioners with separate sideshift

    Fork positioners with separate sideshift

    Increases the efficiency and flexibility of the GTS-Series. More handling capacity can be achieved especially when the load widths change frequently. CLARK fork positioners have separate sideshift.

  • Rear grab handle with horn

    Rear grab handle with horn

    Increased safety and more comfort for the driver, an advantage when frequently driving backwards.

  • Engine bonnet cover

    Engine bonnet cover

    The cover in black increases driver comfort in the interior. Thanks to the artificial leather finish, the cover is easy to clean and is available for all cab variants.

  • Wide drive tyres or Dual drive tyres

    Wide drive tyres or Dual drive tyres

    The GTS-Series can be equipped with wide drive or dual drive tyres on the drive axle to improve traction and stability when cornering.

  • Safe entry and exit

    Safe entry and exit

    The driver can reach his ergonomic workplace comfortably and safely via a large, low-set and non-slip step. The footwell is generously designed so that the driver has enough space even when wearing safety shoes.

  • Robust mast construction

    Robust mast construction

    • Nested mast profiles
    • 6-roller fork carriage as standard








 Equipment

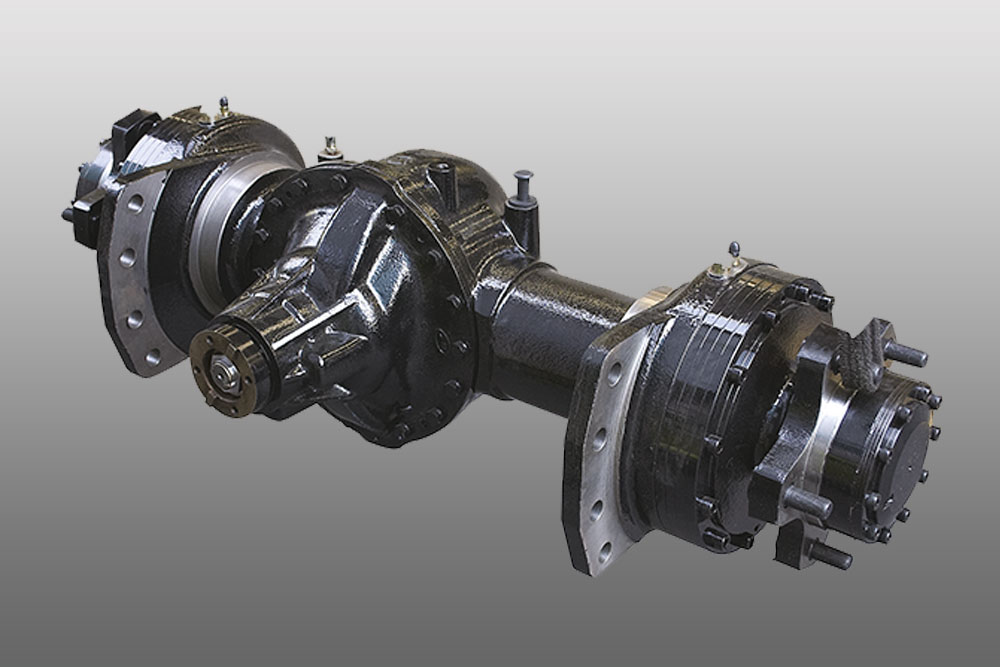

  • Wet disc brakes for a strong braking effect
    Wet disc brakes for a strong braking effect

    Wet disc brakes for a strong braking effect

    The capsuled and oil-cooled wet multi-disc brakes ensure smooth operation. Compared to drum brakes, up to 50%, less effort is required with wet disc brakes. In addition, there is no downtime for maintenance, so there are lower maintenance costs for the brakes as it would be for drum brakes. Another advantage is that dusty or wet environments have no negative effect on the brake performance of these encapsulated multi-disc brakes. In contrast to drum brakes, wet disc brakes also have the best braking effects in harsh environments.

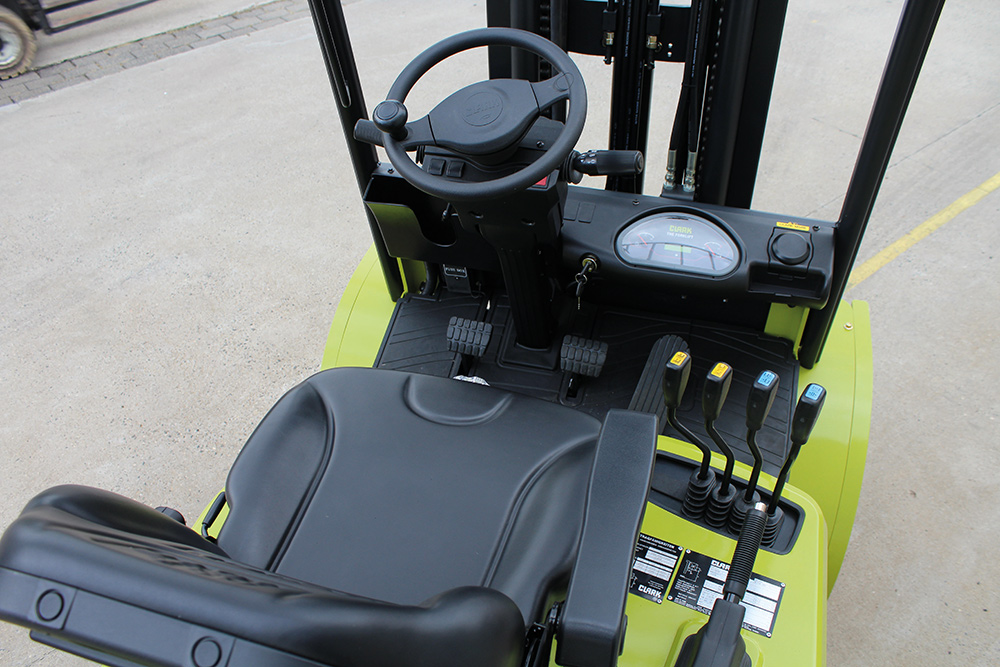

  • Ergonomic driving position with hood mounted levers
    Ergonomic driving position with hood mounted levers

    Ergonomic driving position with hood mounted levers

    The truck is operated via ergonomically positioned hydraulic levers on the hood of the truck. Up to 5 hydraulic functions can be implemented directly ex works.

    Ergonomic driver’s workplace that offers the driver plenty of head and legroom. Predictable controls and the hydraulic power steering ensure intuitive operation and a high level of safety during application.

  • Powerful HMC industrial engine
    Powerful HMC industrial engine

    Powerful HMC industrial engine

    Powerful acceleration and reliable operation are ensured by powerful industrial engines. The GTS trucks are available in diesel or LPG versions.

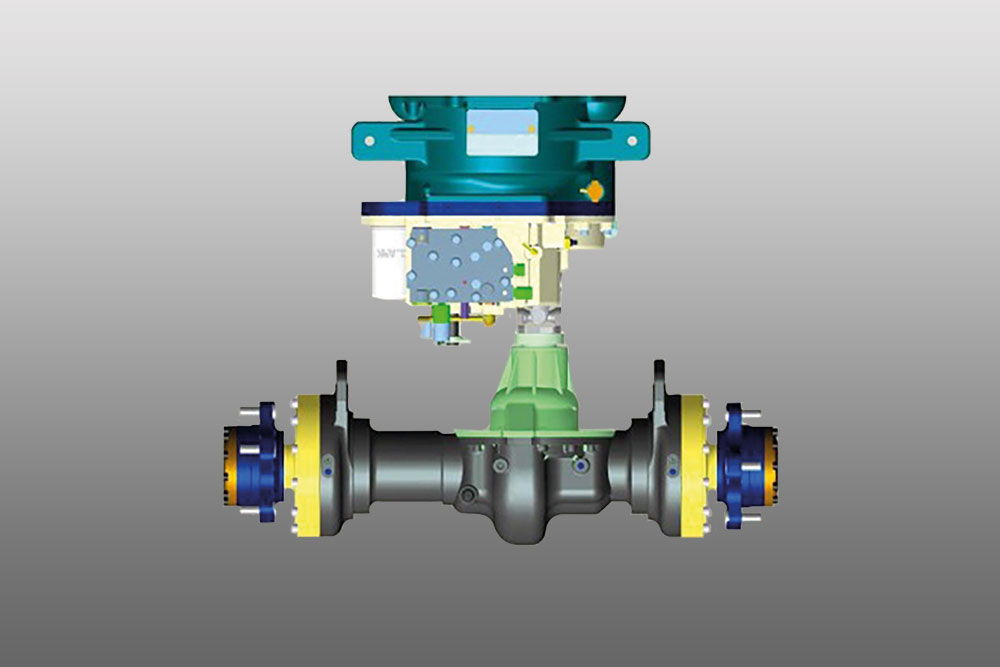

  • Split transmission for smooth driving
    Split transmission for smooth driving

    Split transmission for smooth driving

    The transmission in split design reduces vibrations at the driver's seat and enables a smooth operation.

    Combined with a stable, vibration-free steering axle and an ergonomic operator's compartment, the GTS-Series is not only robust and reliable, but also extremely comfortable and safe.

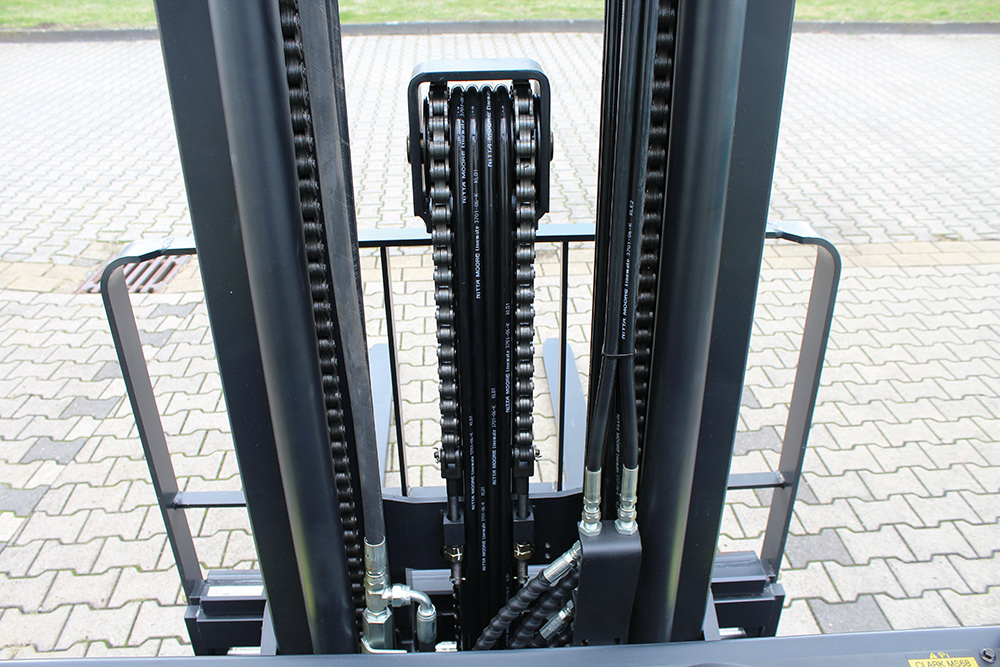

  • Excellent visibility and mast damping system
    Excellent visibility and mast damping system

    Excellent visibility and mast damping system

    The uprights are available in the following versions Standard, Hi-Lo and Triplex. Thanks to the nested mast profiles, the operator has a very good view through the upright. The heavy-duty, nested mast profiles provide high strength even with heavy loads.

    For low-vibration lifting operations, the trucks are equipped with mast damping as standard. During lifting operations, the smooth transfer between the individual mast profiles is ensured. This protects both the goods and the mast components.

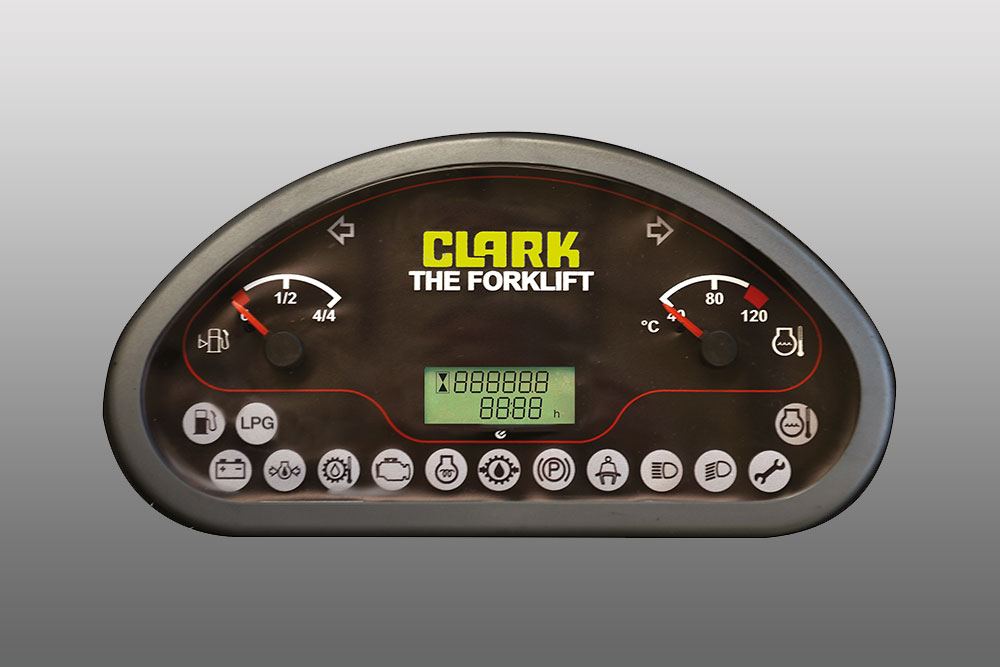

  • Well-informed at all times
    Well-informed at all times

    Well-informed at all times

    The operator display of the GTS-Series does not require a lot of text and is easily understandable.

    • Continuous engine and air filter monitoring
    • Monitoring of the diesel particulate filter
      - for diesel engines only
    • Error indication in the truck display









Video

Product video: Diesel forklift and gas forklift in use

Reliable in all tasks with high load capacities and powerful industrial engines.
Experience our forklift trucks in action.



Forklift trucks with diesel or LPG drive GTS20-33

29 November 2022 – Power in harmony with the environment and consumption



Clark GTS 20-33 now with improved industrial engines with EU emission stage 5

Duisburg, 29 November 2022 – Clark has equipped the popular GTS series with new HMC diesel and LPG engines.
